I notice on a TS75 engine that there is variable valve timing device on front right camshaft? correct or not?. The 155 head is a much cleaner look for a TS conversion I want to do.
On my 155 TS head this device V V T is not there. Why was it changed and/ or was the V V T not available on the 155?. Do 155 's use the same head for various engine displacements assuming there is more than one diplacement. What displacements were availalble? Obviously the cams and related specs ie. valve sizes might be different. But what about other differences. Who has the insight here ?/ Mats? Please expound!
Ross
On my 155 TS head this device V V T is not there. Why was it changed and/ or was the V V T not available on the 155?. Do 155 's use the same head for various engine displacements assuming there is more than one diplacement. What displacements were availalble? Obviously the cams and related specs ie. valve sizes might be different. But what about other differences. Who has the insight here ?/ Mats? Please expound!
Ross
Ross Gallichotte
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
You will find that the distributor at the rear of the head on the exhaust cam will be a bit in the way when mounting the engine length-wise...
VVT was present on all 2.0 TS as far as I know.
VVT was present on all 2.0 TS as far as I know.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-
- Silver
- Posts: 30
- Joined: Wed Feb 23, 2005 1:31 pm
- Location: Southern California
Mats ,
You're saying that all TS came with V V T, Thx.
The 155 head is also a TS but how was V V T accomplished or was it done differently on the 155.? I will use an 8 wire distributor off the block. Right on about the exhaust cam driven distributor would be in the way when the normally sidewinder(transverse) 155 head is turned longitudingly.
Is there any electronic source for 155 shop manual to get an overview I don't want to invest in a lot of books to glean a little info. Any schematics of engine (exploded diagrams-parts )available?
Ross
You're saying that all TS came with V V T, Thx.
The 155 head is also a TS but how was V V T accomplished or was it done differently on the 155.? I will use an 8 wire distributor off the block. Right on about the exhaust cam driven distributor would be in the way when the normally sidewinder(transverse) 155 head is turned longitudingly.
Is there any electronic source for 155 shop manual to get an overview I don't want to invest in a lot of books to glean a little info. Any schematics of engine (exploded diagrams-parts )available?
Ross
Ross Gallichotte
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
No, I said that as far as I know all 2.0 TS engines have VVT.
Can you produce pics of your engine? I'm sure the VVT should be ot the same place as on the 75 TS.
Can you produce pics of your engine? I'm sure the VVT should be ot the same place as on the 75 TS.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-
- Silver
- Posts: 30
- Joined: Wed Feb 23, 2005 1:31 pm
- Location: Southern California
More TS75 /155 TS
Mats ,
you wrote:" As far as you know....." no quibble here.
However, let me correct myself, I wrote : Right on about the exhaust cam driven distributor would be in the way when the normally sidewinder(transverse) 155 head is turned longitudingly.
I meant that my 155 head has no provisions for distributor drives as the 155 motor was all electronic with crank triggered ignition?.
The TS 75 has distributors at front exhaust cam drive, one on the right front side of block and a block off plate on rear of head(I assume one could be put here). See photos.
I have seen photos of 155TS engine with both distributors mounted off the head or was told this was the 155 layout ?. My 155 head shows this is not possible. This is why an 8 wire distributor off the block is used, if all electronic is not used.What gives?
You wrote: "You will find that the distributor at the rear of the head on the exhaust cam will be a bit in the way when mounting the engine length-wise... "which motor are you refferring to? Was there more than one 155 setup, early distributors, later all electronic ?
Does the 155 have V V T how was it accomplished?.
you wrote:" As far as you know....." no quibble here.
However, let me correct myself, I wrote : Right on about the exhaust cam driven distributor would be in the way when the normally sidewinder(transverse) 155 head is turned longitudingly.
I meant that my 155 head has no provisions for distributor drives as the 155 motor was all electronic with crank triggered ignition?.
The TS 75 has distributors at front exhaust cam drive, one on the right front side of block and a block off plate on rear of head(I assume one could be put here). See photos.
I have seen photos of 155TS engine with both distributors mounted off the head or was told this was the 155 layout ?. My 155 head shows this is not possible. This is why an 8 wire distributor off the block is used, if all electronic is not used.What gives?
You wrote: "You will find that the distributor at the rear of the head on the exhaust cam will be a bit in the way when mounting the engine length-wise... "which motor are you refferring to? Was there more than one 155 setup, early distributors, later all electronic ?
Does the 155 have V V T how was it accomplished?.
- Attachments
-

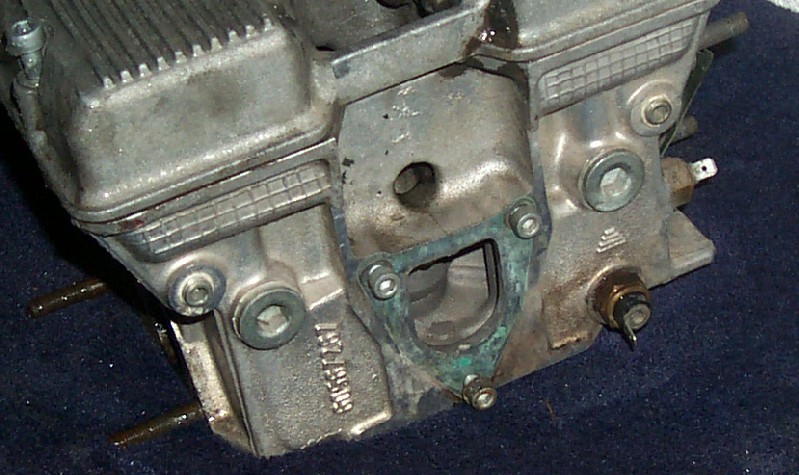

- rear head block off plate for distributor on TS75
- P0004220.JPG (156.52 KiB) Viewed 18747 times
-

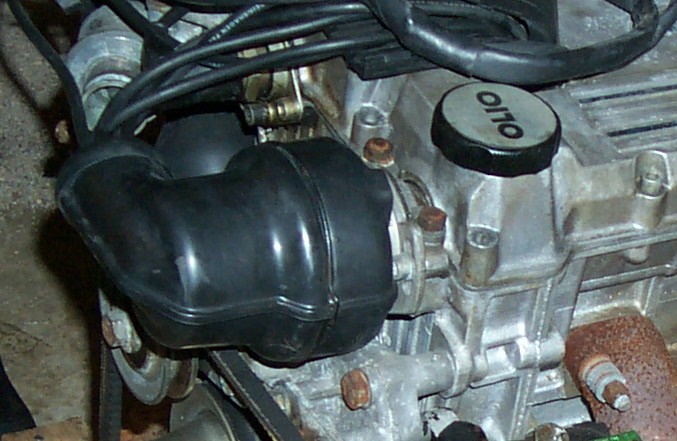

- VVT device at front of head also front exhaust distributor TS75
- P0004216.JPG (113.04 KiB) Viewed 18751 times
-

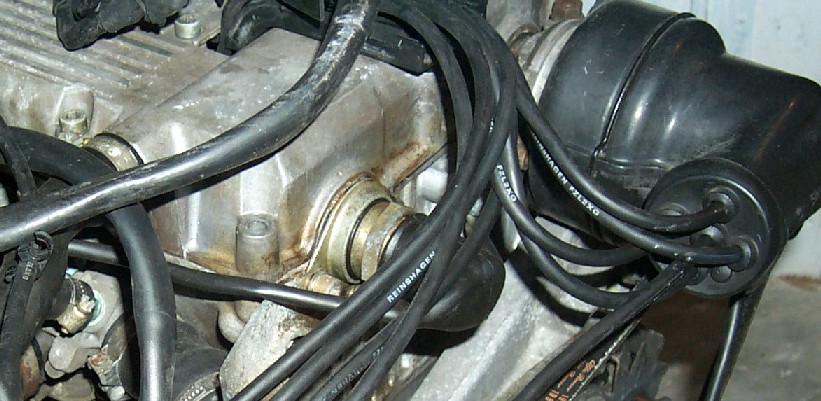

- front distributor on TS75
V V T is partially hidden - P0004229.JPG (90.9 KiB) Viewed 18748 times
- front distributor on TS75
Ross Gallichotte
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
-
- Silver
- Posts: 30
- Joined: Wed Feb 23, 2005 1:31 pm
- Location: Southern California
Mats,
Also, I was told 155 used ignition modules mounted remotely, this correct ? That's what I mean by all electronic, I think.
We seldom get to compare the European models, sorry for the trouble.
Also, I was told 155 used ignition modules mounted remotely, this correct ? That's what I mean by all electronic, I think.
We seldom get to compare the European models, sorry for the trouble.
- Attachments
-

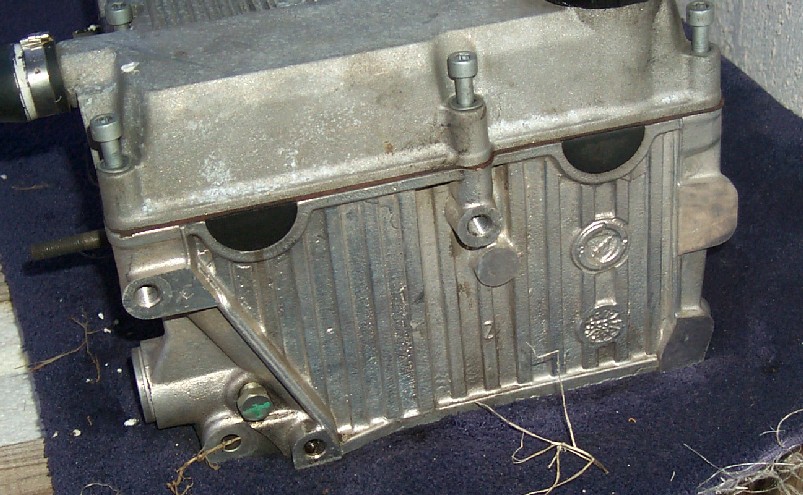

- rear of 155TS head
- P0004233.JPG (110.83 KiB) Viewed 18732 times
-

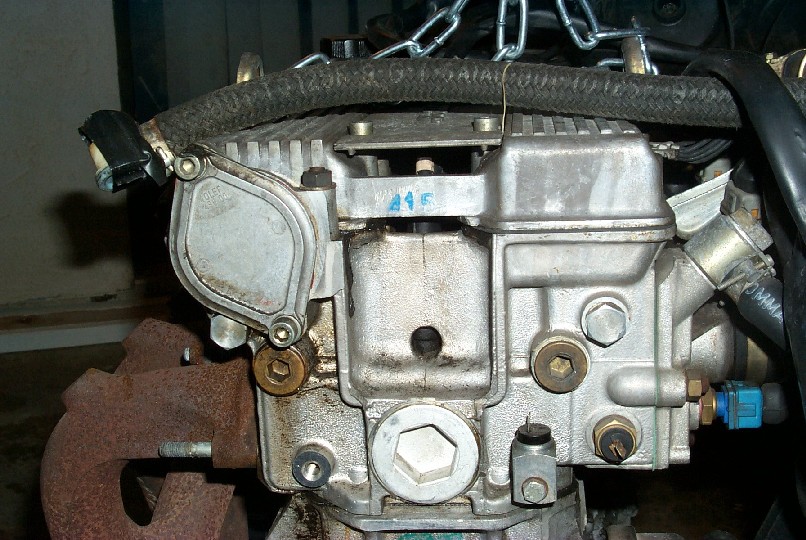

- front of 155TS head
- P0004263.JPG (136.58 KiB) Viewed 18738 times
Ross Gallichotte
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
'73 2000 GTV
'69 1750 GTV
'61 Guilietta Sprint
Now THAT was some interesting pics! Thanks!
I wonder if they changed anything internally (apart fron the obvious camshaft changes, that head must fit the old block right? Wonder if it runs wasted spark or if there is a cam-phase sensor anywhere.
Is that the where the thermostat housing fits at the back of the head? Got any more pics on complete installations? The VVT is obviously removed...
I wonder if they changed anything internally (apart fron the obvious camshaft changes, that head must fit the old block right? Wonder if it runs wasted spark or if there is a cam-phase sensor anywhere.
Is that the where the thermostat housing fits at the back of the head? Got any more pics on complete installations? The VVT is obviously removed...
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Yes please.
I have a TS engine in pieces myself but cutaway pics are very nice to have.
Have you seen any changes to the heads more then the obvious ones about the VVT and the distributor mounts?
I have a TS engine in pieces myself but cutaway pics are very nice to have.
Have you seen any changes to the heads more then the obvious ones about the VVT and the distributor mounts?
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Tnx.
"You'll definetely notice the major improvement over the 75 TS head!"
Heh, can you be a little more precise? What are the differences?
What head is that on the cutaway pics above? Looks exactly like the sections of the 75 TS head in my workshop manual.
The 155 heads are very scarce but the 75 heads are plenty, I can't just go get a 155 head and have a look myself I'm afraid.
thanks
"You'll definetely notice the major improvement over the 75 TS head!"
Heh, can you be a little more precise? What are the differences?
What head is that on the cutaway pics above? Looks exactly like the sections of the 75 TS head in my workshop manual.
The 155 heads are very scarce but the 75 heads are plenty, I can't just go get a 155 head and have a look myself I'm afraid.
thanks
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
- Maurizio
- Verde
- Posts: 680
- Joined: Wed Dec 01, 2004 4:49 am
- Location: the Netherlands, 153.1km from the N'ring :-)
Mats, the pics from Dennis are from a 75 head.....
Hmm found something interresting:
All the 155 TS (1.7, 1.8 and 2.0 8v) heads are the same... which are again identical to the 164 TS (my 1992 to 1997)
OK back to work boss comes in
Hmm found something interresting:
All the 155 TS (1.7, 1.8 and 2.0 8v) heads are the same... which are again identical to the 164 TS (my 1992 to 1997)
OK back to work boss comes in
Banned.. ? Daily donky.. ==> BMW 325d
E36M3 (3.0) Ringtool ==> definitely BANNED!
AR 75 TS Ringtool '90, AR Spider 2000 veloce '79
E36M3 (3.0) Ringtool ==> definitely BANNED!
AR 75 TS Ringtool '90, AR Spider 2000 veloce '79
- Dennis
- Gold
- Posts: 194
- Joined: Mon Nov 29, 2004 8:44 am
- Location: Amersfoort, The Netherlands
- Contact:
They are the same pics, but I've bought a 155 2.0 TS head and compared it to the cutaway head and found they were identical. To my own surprise aswell!! So I took a 75 TS head and compared it and saw the difference. The inlets of the 155 head have a better angle.
'81 GTV6 3.0 QV
'91 75 TS (track)
'02 BMW 330i Touring
'91 75 TS (track)
'02 BMW 330i Touring
