Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:45 pm

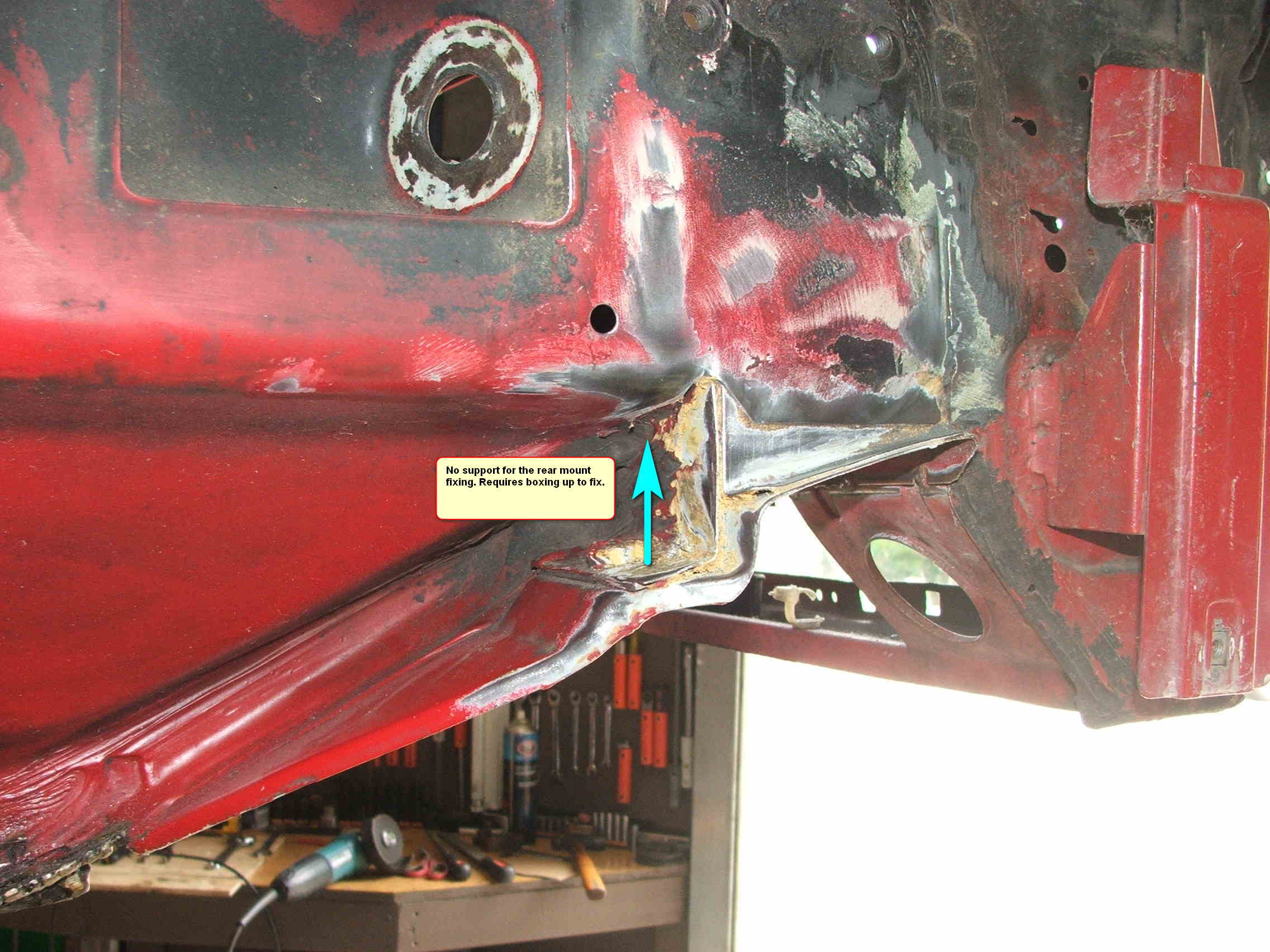

The following work is not radical but I have not these seen minor modifications elsewhere. It is my standard practice. When installing large anti-roll bars, the original fixings tend to crack unless strengthened up.
Please note that welds are not shown as complete. I am also using a gas-less flux core MIG wire and so the weld puddle does not flow as a typical weld which makes for a less than "normal looking" MIG weld.
Attachments
Original Anti-Roll Bar mount.JPG
Original Anti-Roll Bar mount.JPG (223.88 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:51 pm

The fix.
Attachments
Plating up the void.JPG
Plating up the void.JPG (232.89 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:52 pm

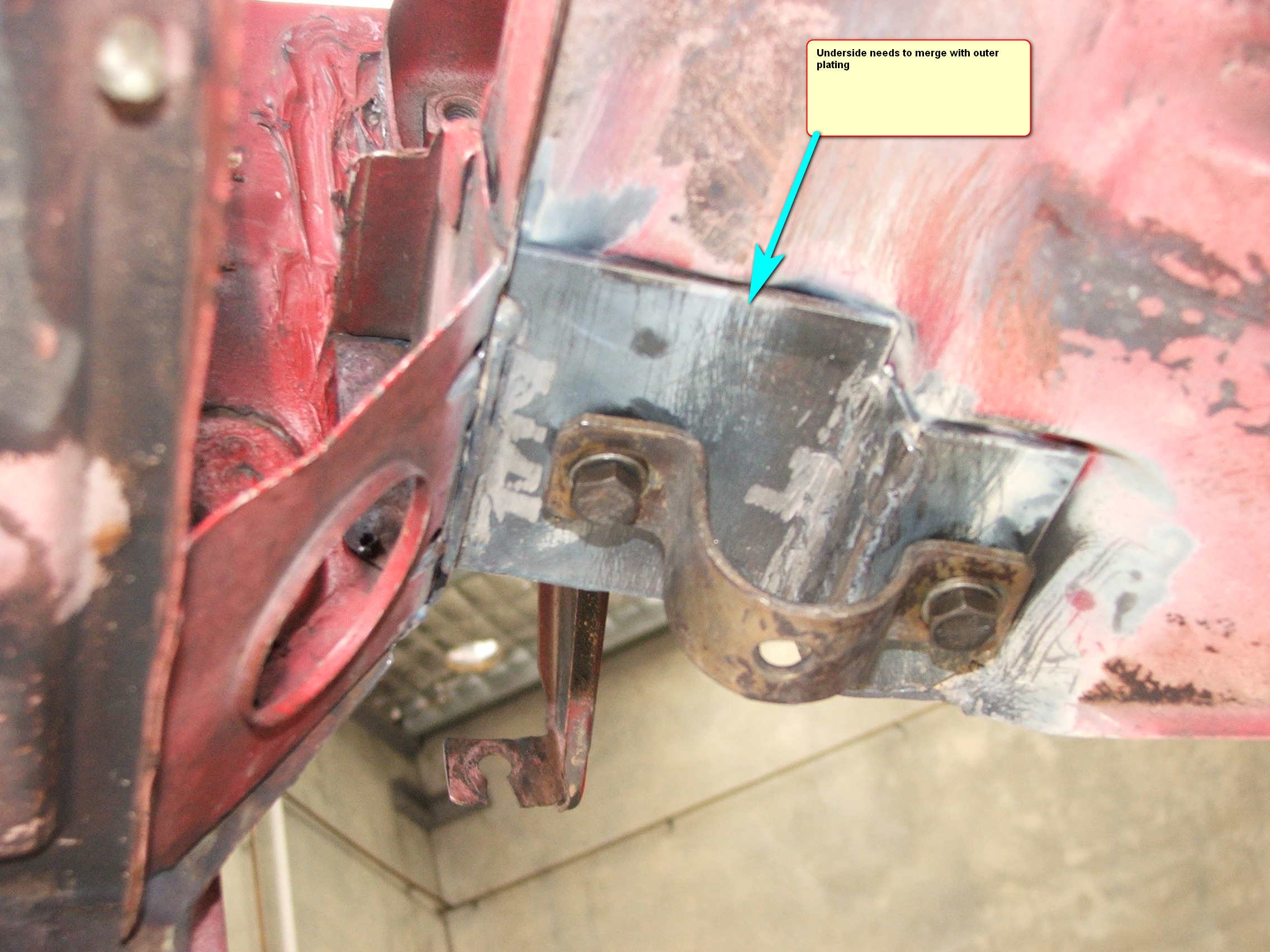

Don't forget the underside
Attachments
Underside of Roll Bar mount.JPG
Underside of Roll Bar mount.JPG (242.46 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:53 pm

Integrate the side plate and bottom plate during the weld.
Attachments
Plated mountig face.JPG
Plated mountig face.JPG (243.79 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:56 pm

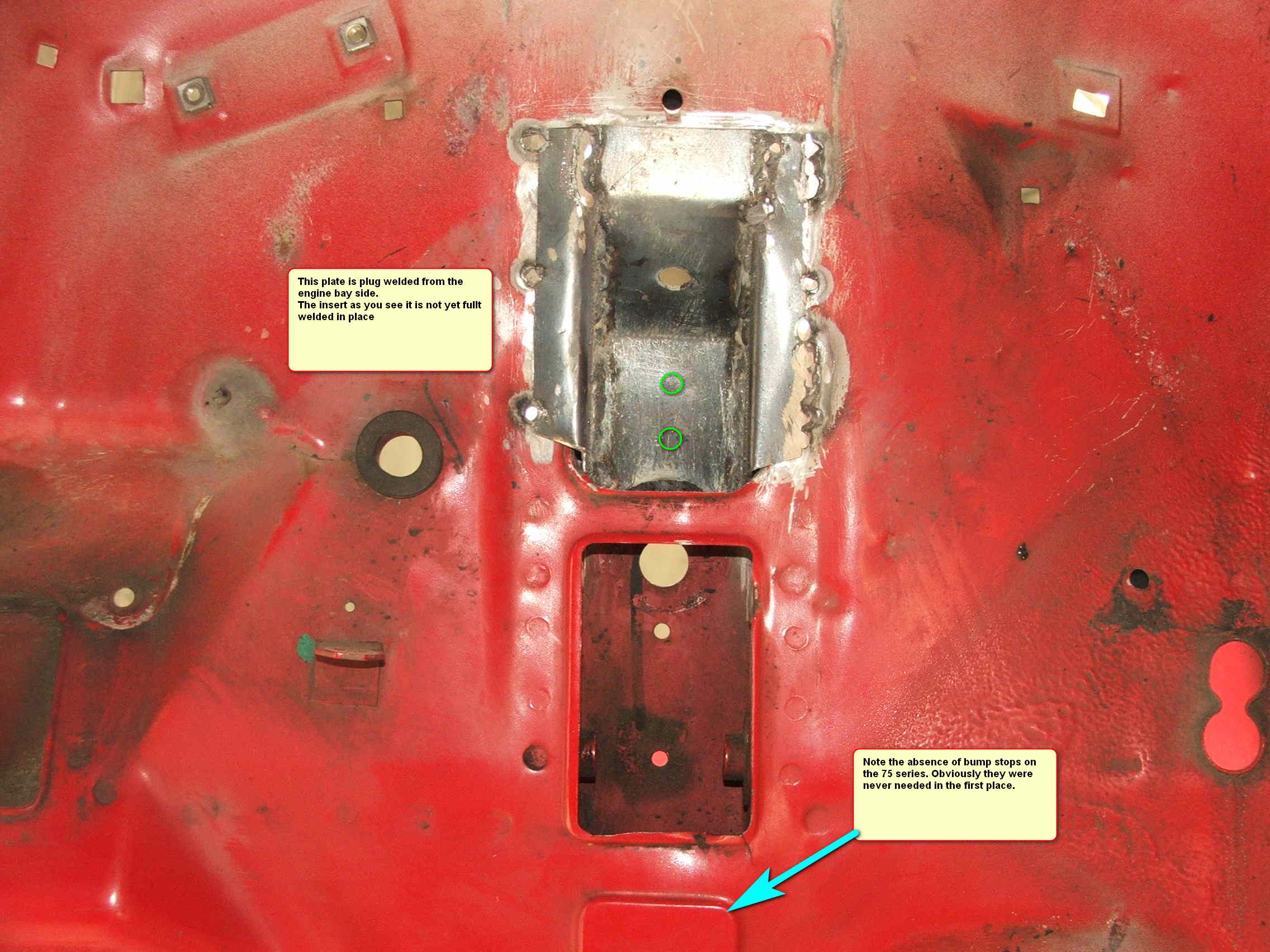

Because this car will use coil overs, the damper tower will carry all the suspension stress. It should therefore be strengthened up to take the load and triangulated to distribute this load.
Attachments
Shock tower underside reinforcement.JPG
Shock tower underside reinforcement.JPG (239.18 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:57 pm

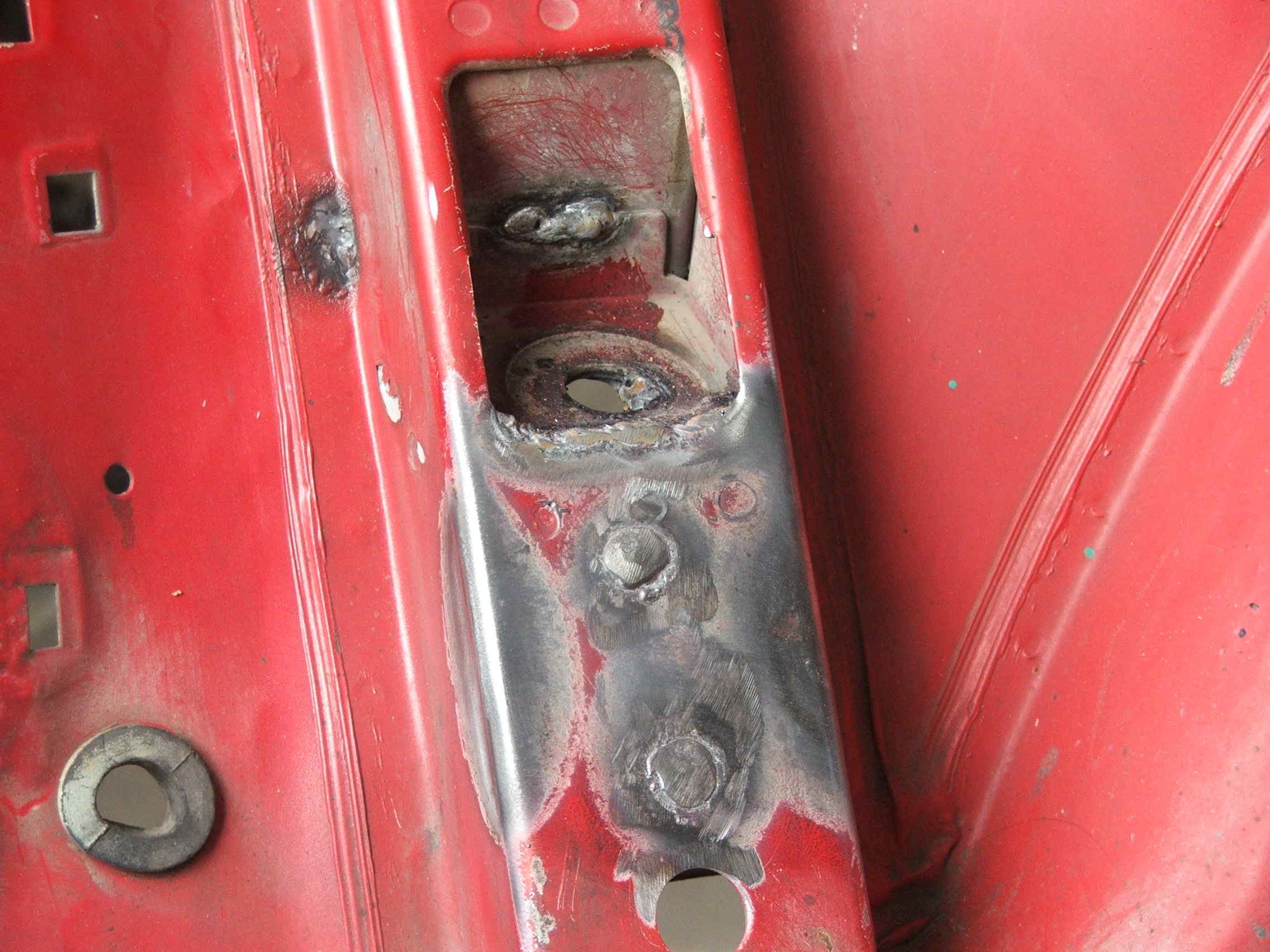

Engine bay side
Attachments
Plug welding plating to shock tower.JPG
Plug welding plating to shock tower.JPG (229.39 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Tue Dec 24, 2019 12:58 pm

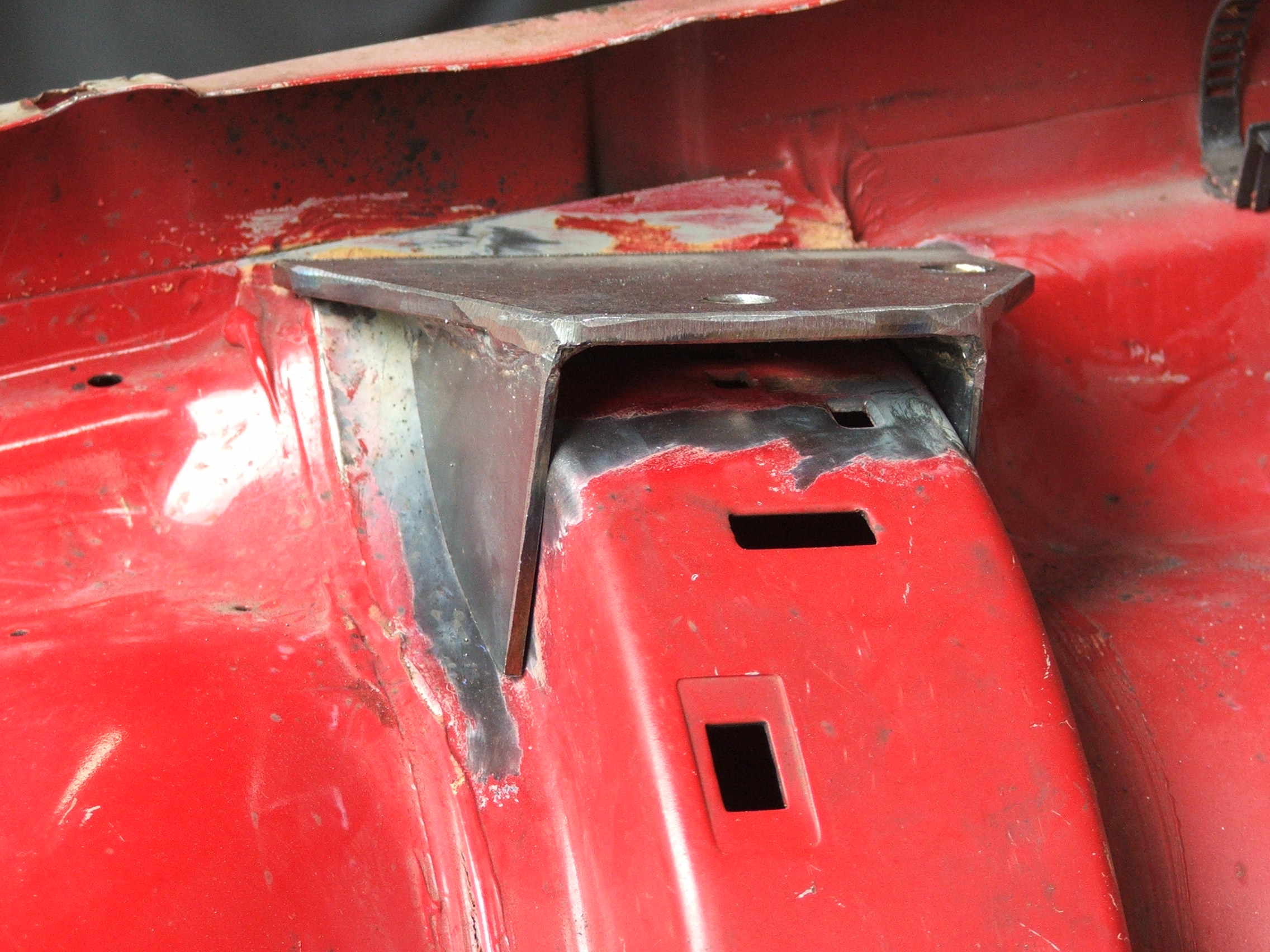

Part of the triangulation mounts
Attachments
Engine bay cross bracing mount.JPG
Engine bay cross bracing mount.JPG (238.28 KiB) Viewed 578 times
Transaxle Alfas Haul More Arse
User avatar
75evo
Verde
Verde
Posts: 909
Joined: Tue Oct 11, 2005 8:56 am

Re: "Patches" MD's Final Racing Project

Post by 75evo » Wed Dec 25, 2019 1:52 pm

Oooh I like this. I will absolutely copy this. I have the sway bar reinforcement plates already in place. But the side pieces seem like a good invention. Good ole Aussie ingenuity, wonder if it would get the seal of approval from the land of the birth of democracy.... :mrgreen:
KevinR
Platinum
Platinum
Posts: 474
Joined: Sun Mar 20, 2016 2:46 pm

Re: "Patches" MD's Final Racing Project

Post by KevinR » Sat Dec 28, 2019 2:56 pm

Top job !! This is going to be a very interesting thread. Glad you raised the pick up points for cross bracing in engine bay at the shock towers as I had to space it up quite a bit to get the bar to cross over the plennum.

Is it possible to go dry sump on new project so you can move the engine back a bit . But hey .. you have not told us what power plant is going in . I can see a few months of suspense and interesting reading.
KevinR
Platinum
Platinum
Posts: 474
Joined: Sun Mar 20, 2016 2:46 pm

Re: "Patches" MD's Final Racing Project

Post by KevinR » Fri Jan 03, 2020 12:45 am

Md , I'm sensing a possible twin spark supercharged motor in there seen that you have it perfected by now :)
User avatar
MD
Verde
Verde
Posts: 2385
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: "Patches" MD's Final Racing Project

Post by MD » Fri Jan 24, 2020 11:27 pm

Ah it's a slow process to get up and went after Christmas holidays. All the engineering shops are walking around scratching goolees and finding
somewhere to hide having got used to the layback of the holiday season. As the system inches forward, I might be getting some of my parts to install.

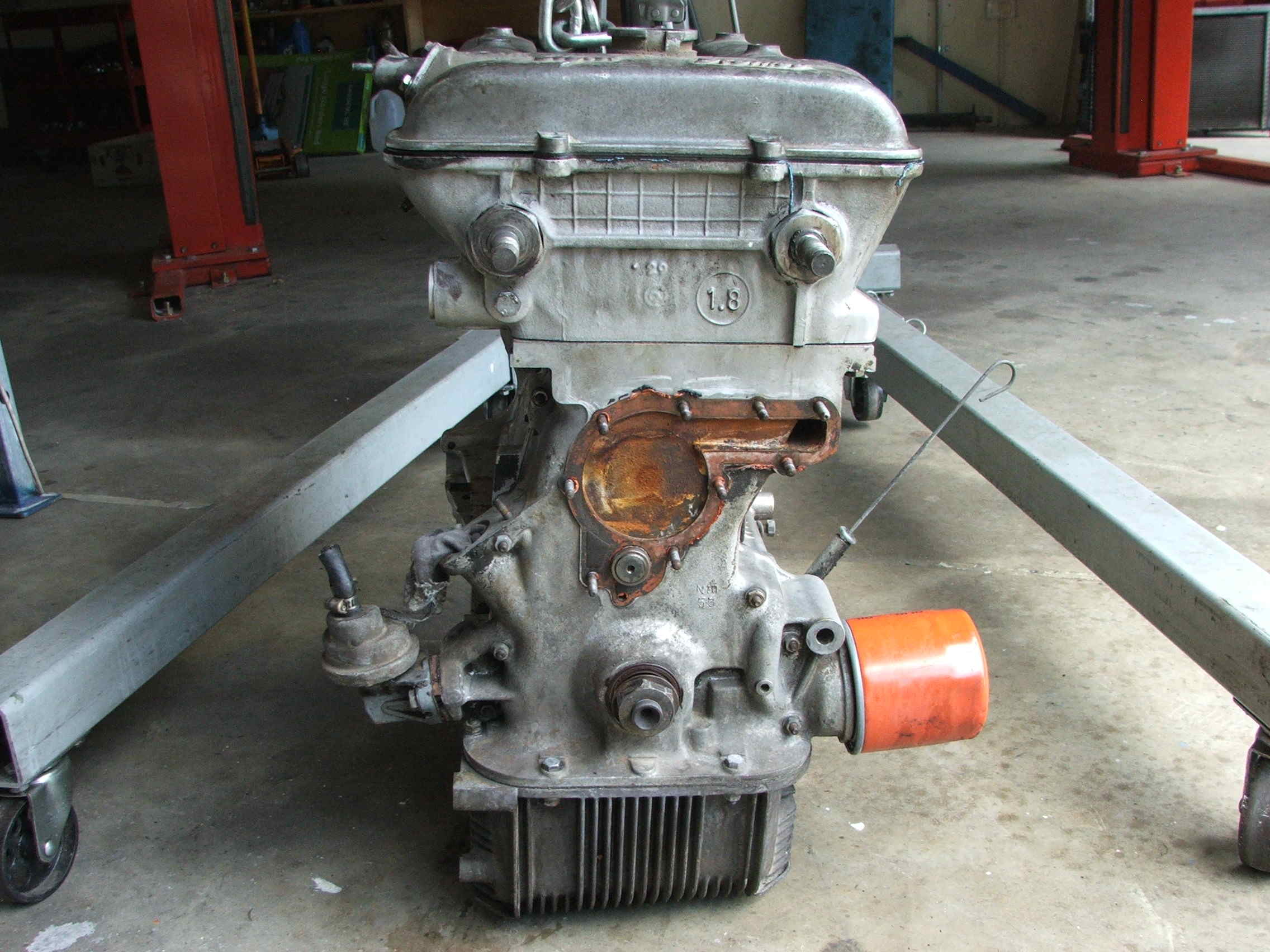

The engine remains an uresolved issue and is going to keep me guessing for a while.

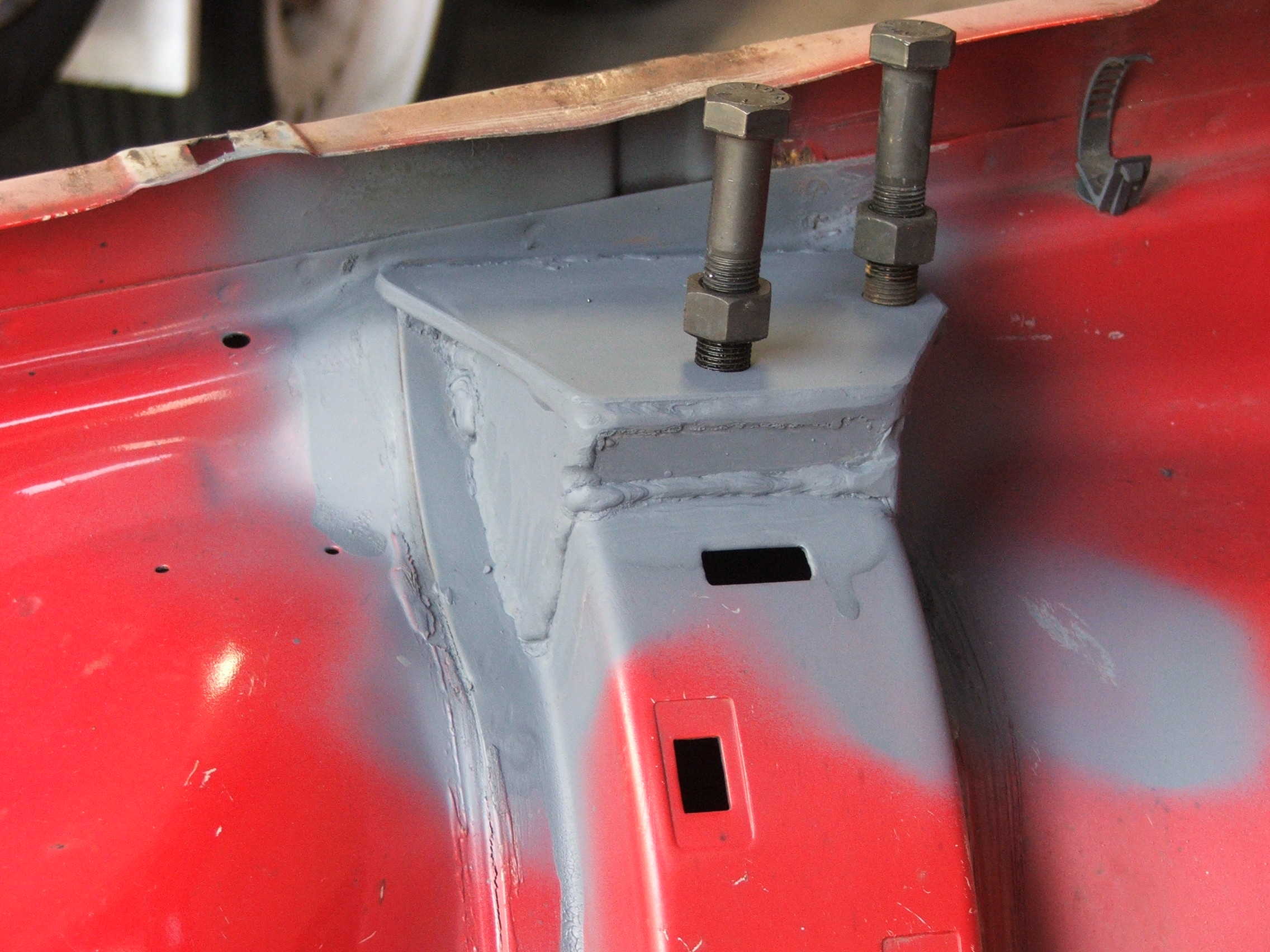

In the meantime Zeefa, here's the stitch up of the brace locator with the bolts threaded into the captive nuts inside the mount.

At the moment not much progress to report on, I have finished the full cage weld and it is painted. Big deal.
Attachments
Cross Brace Mount.JPG
Cross Brace Mount.JPG (225.2 KiB) Viewed 361 times
Transaxle Alfas Haul More Arse
