Another mad 155 twin turbo project from the same creator

Post by kevin » Tue Apr 12, 2011 10:19 am

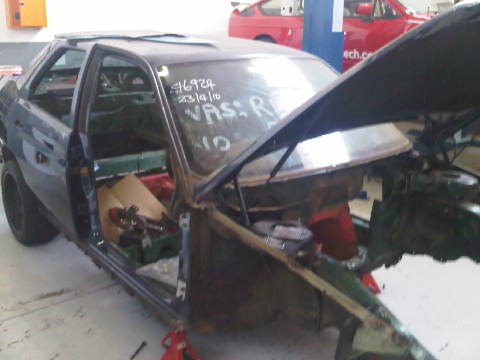

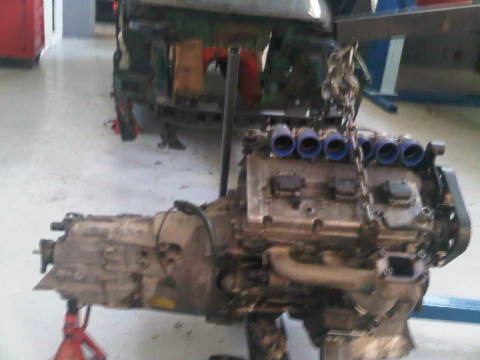

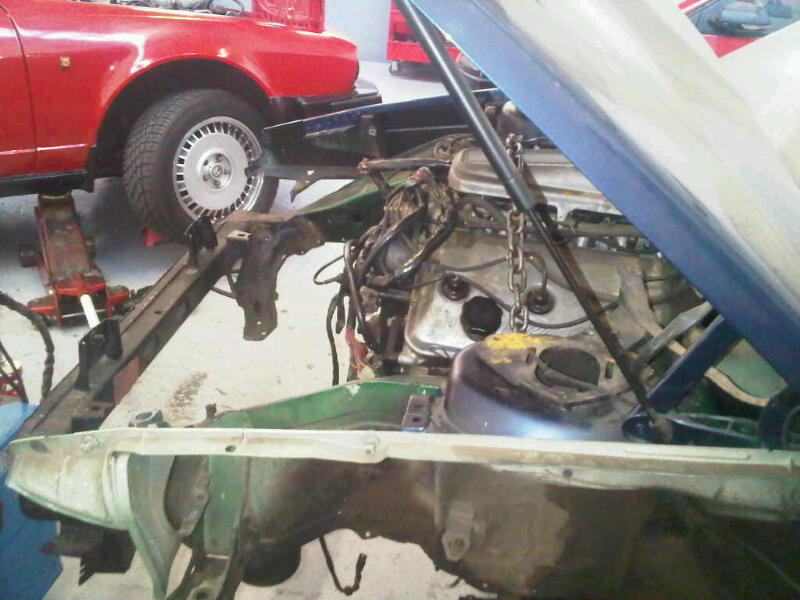

The creator of the last 155 twin turbo midmount decided he needed a new project but this time its gonna be a serious track contendor in our open series to take on the Gotech BMW turbos which are push over 450kw on the wheels.
Watch this build. Note engine mounts are gonna be attached to front rack/crossmember.
Attachments
155tt bmwtunnel.jpg
155tt bmwtunnel.jpg (22.1 KiB) Viewed 8412 times
155tt dummy engine..jpg
155tt dummy engine..jpg (25.21 KiB) Viewed 8412 times
155tt engineand shell.jpg
155tt engineand shell.jpg (21.67 KiB) Viewed 8412 times
155tt shell1.jpg
155tt shell1.jpg (22.13 KiB) Viewed 8412 times
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Tue Apr 12, 2011 11:12 am

Guys feel free to comment as the owner still does not know whats easiest supension to put in , easiest way to remove engine, create front end stability through bracing . Looks like its gonna be dedion rear again or if any one has a easier option. There is access to all bmw spares :?
User avatar
Giuliettaevo2
Verde
Verde
Posts: 776
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Another mad 155 twin turbo project from the same creator

Post by Giuliettaevo2 » Tue Apr 12, 2011 1:03 pm

There used to be a website with a 155 rwd 24v on it. :wink:

http://www.grupposportivo.net/AlfaRomeoS3d6.htm

I love the shape of the 155 but hate the FWD, you guys are builkding it like it should be build. 8)

rear axle from a 155 Q4 would be my bet. quite easy to fit since it is practically the same as the original 155 axle. Lancia Dedra Integrale has the same axle. Just use a bmw diff.

The bmw zf gearbox is a very strong box, good choice for sure. What are you gonna do for a clutch? I wouldn't mind getting such an adapterplate to fit that gearbox... :oops:

Easiest would be modifying the front subframe so that the engine mounts to that and you can take it out as one unit. front suspension could be retained, just need to take the cv-joint of the driveshafts and keep using them in the hub to keep the bearing together. :wink:
Drive it like you stole it...
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Thu Apr 14, 2011 9:45 am

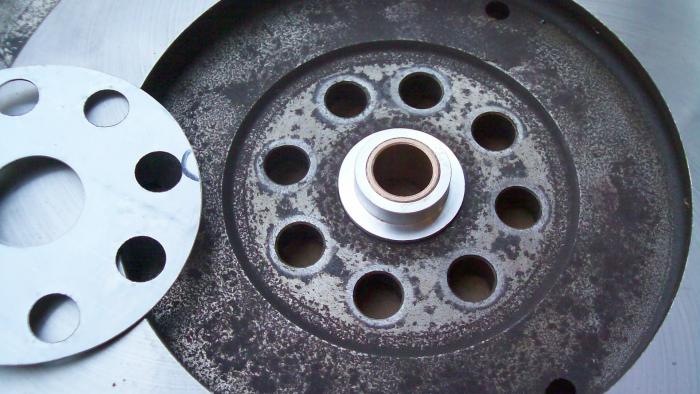

these are the adaptor plate we make here
Attachments
User avatar
Giuliettaevo2
Verde
Verde
Posts: 776
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Another mad 155 twin turbo project from the same creator

Post by Giuliettaevo2 » Thu Apr 14, 2011 11:58 am

:shock: 8)

CAD file available perhaps? :D Would save me some work for sure.. :wink:

That only works with the special flywheel/clutch combo i suppose? Because the gearbox prise-axle ( the one that goes into the clutchplate) doesn't stick out of the gearbox at the front it will move even further back with the adapterplate installed. But that might be solved with an adapter of some kind. :?
Drive it like you stole it...
la_strega_nera
Platinum
Platinum
Posts: 494
Joined: Tue Feb 21, 2006 10:05 pm
Location: Sunny Euro-Brisney

Re: Another mad 155 twin turbo project from the same creator

Post by la_strega_nera » Thu Apr 14, 2011 1:37 pm

Giuliettaevo2 wrote::shock: 8)

CAD file available perhaps? :D Would save me some work for sure.. :wink:

That only works with the special flywheel/clutch combo i suppose? Because the gearbox prise-axle ( the one that goes into the clutchplate) doesn't stick out of the gearbox at the front it will move even further back with the adapterplate installed. But that might be solved with an adapter of some kind. :?
The kit that was being done by Larry on the BB for 105 gearboxes used a pressed in piece that registered on the inside edge of the flywheel, and bolted up to the flywheel bolts and let you put the pilot bushing wherever it needed to be - I imagine you'd use the same trick here.
1966 GTV
1982 Suzuki "Bathurst" Katana
1995 Cagiva Mito (race kitted 250 powered)
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Fri Apr 15, 2011 7:53 am

To be honest, i have never done this set up so will find out. Probably sooner though as im not sure how many gearboxes im gonna go through with my race car. Wish i could get my hands on a box from that IMSA 75. I am actually copying this adaptor as we lost it on our cad file. I will send you copy as soon as im done.
User avatar
Giuliettaevo2
Verde
Verde
Posts: 776
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Another mad 155 twin turbo project from the same creator

Post by Giuliettaevo2 » Fri Apr 15, 2011 9:09 am

That's great Kevin! :D If i can help you out with anything please let me know...
Drive it like you stole it...
User avatar
Giuliettaevo2
Verde
Verde
Posts: 776
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Another mad 155 twin turbo project from the same creator

Post by Giuliettaevo2 » Wed Jun 01, 2011 2:22 pm

Hi Kevin, you didn't by any chance find time to make the adapter yet? :oops:

I'm starting a quick v6 conversion on an Alfetta sedan in a few weeks and i'm going front mount gearbox on it 8) . I've already made the rear diff arrangement to use a BMW 188 diff and i have a 325i M50 gearbox ready for it.

If you have a drawing for me that would be great and if not it's too bad, then i'll have a go at it myself. :wink: Hardest thing would be to make sure the gearbox is in exactly the right spot, centering the gearbox i mean. :|

Any progress/pics on the 155 ? :P
Drive it like you stole it...
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Sat Jun 04, 2011 10:25 pm

Giuliettaevo, my mate put his motor in before I copied it as I was in such a rush to get my car ready for the race as well. There is another spacer lying under a huge pile which we will look for . I will let you know by Tuesday this week
User avatar
Giuliettaevo2
Verde
Verde
Posts: 776
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Another mad 155 twin turbo project from the same creator

Post by Giuliettaevo2 » Sun Jun 05, 2011 2:06 am

Kevin that's great! a million thanks from me already. :D
Drive it like you stole it...
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Thu Jun 09, 2011 2:20 pm

No joy to find adaptor as that one in the pic was last one. However I will pass by glen wood this weekend to drop off front bumpers so will ask if any there.
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Sun Jun 12, 2011 4:31 am

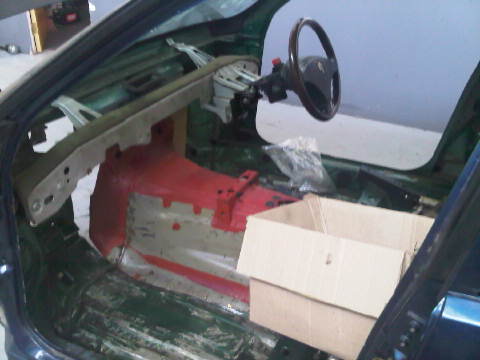

progress pic of 155. Stripped a 119 for rear setup.
Attachments
WhizzMan
Silver
Silver
Posts: 29
Joined: Tue Apr 26, 2011 11:17 am

Re: Another mad 155 twin turbo project from the same creator

Post by WhizzMan » Sun Jun 12, 2011 10:56 am

Any chance the owner will come on here himself, or maybe on the 155club forum to share his project and the previous one? The RWD one is quite the mythical car in 155-land.
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Another mad 155 twin turbo project from the same creator

Post by kevin » Sat Jul 09, 2011 9:31 am

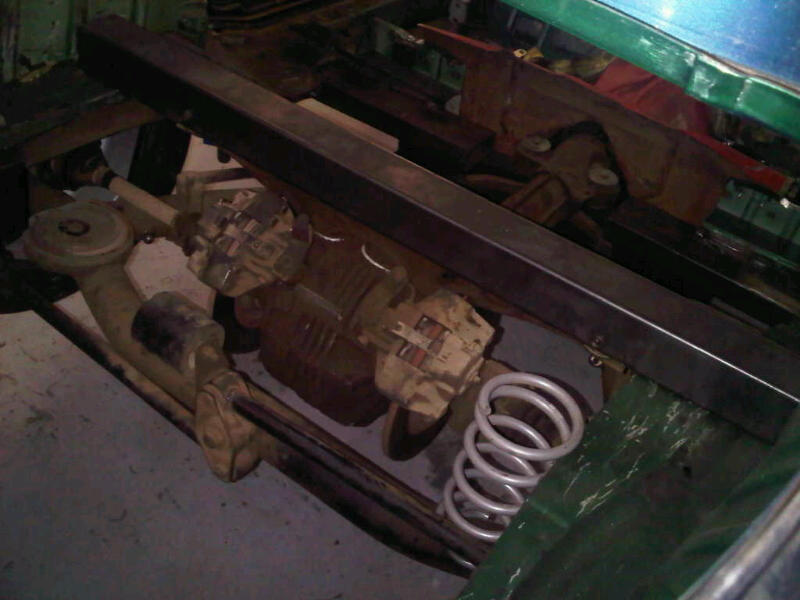

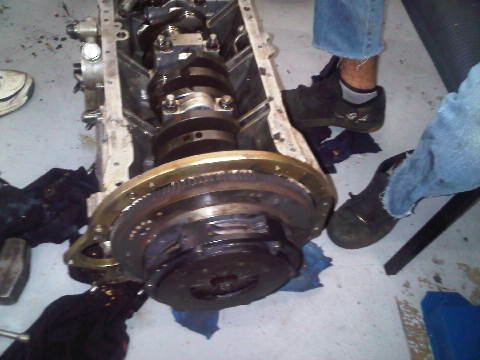

whizzman , he was on the forum long ago but will get him to rejoin . Its gonna be a long project but here are some more pics. Plan is getting engine as far back as possible like in the DTM. Rear supension is in but from here planing of shock point etc starts.
Ps check out the rims on the gtv in backround
Attachments
