Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Sat Jul 19, 2014 1:43 pm

I took some pics a while back of a homologated independent rear Dedion on this ex race 75 . I understand it was only homologated for the Italian series .
Some pics first of car and interior before underside .
Attachments
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Sat Jul 19, 2014 1:55 pm

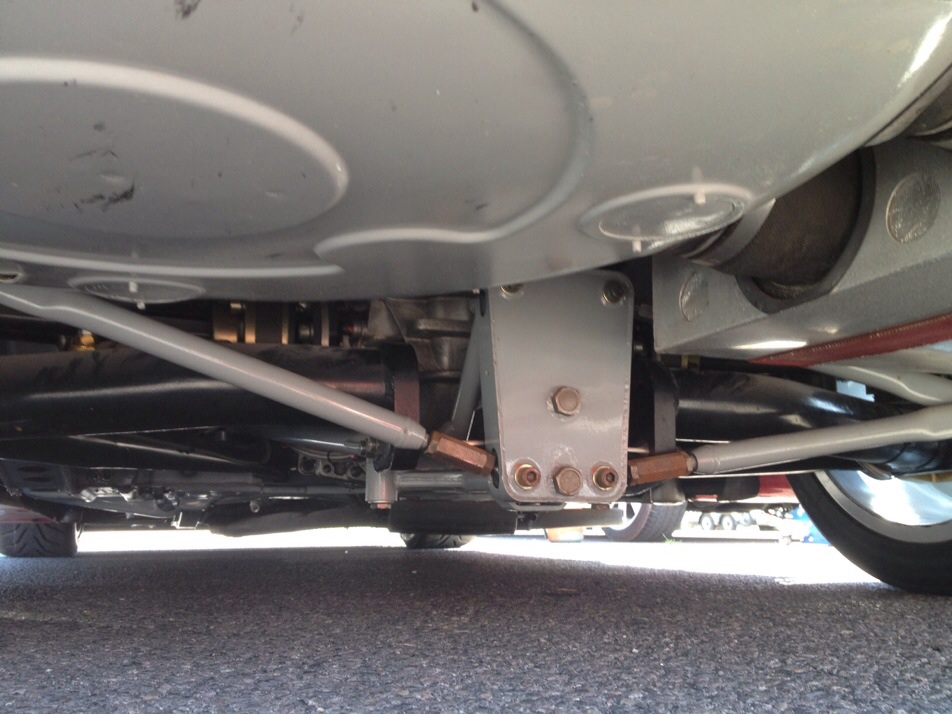

Rear suspension . Note blades are used on rear pivot point .
Attachments
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Sat Jul 19, 2014 2:05 pm

Four wheel steering :shock:

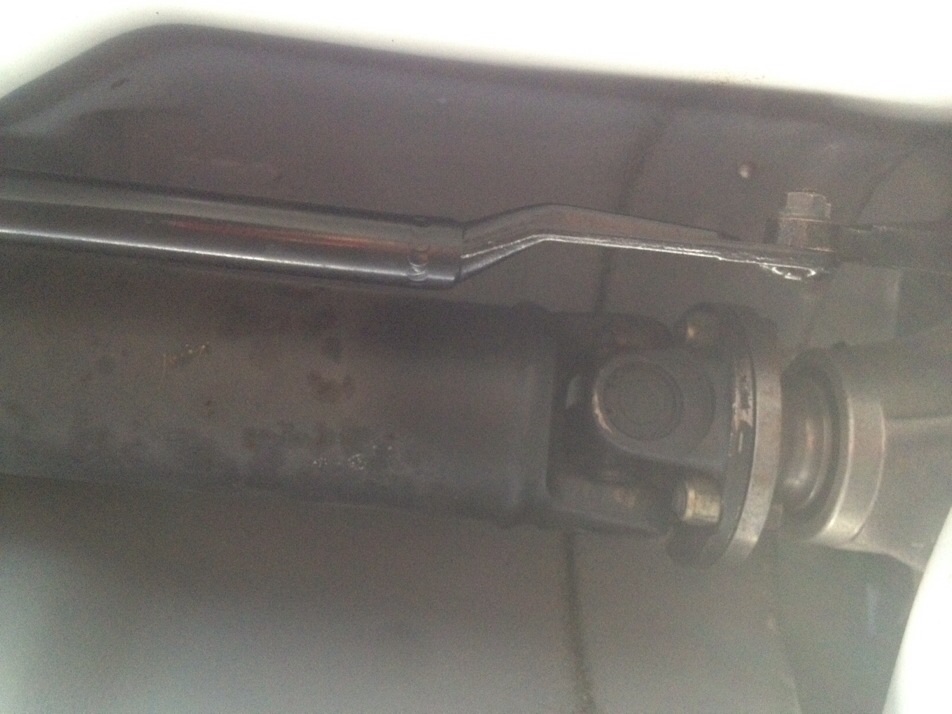

The rear anti roll is connected through universals to the toe adjustment on hub .
Attachments
User avatar
Giuliettaevo2
Verde
Verde
Posts: 774
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by Giuliettaevo2 » Sun Jul 20, 2014 3:32 am

Very nice pics. :)

Looks rather complicated to me. :oops:

A guy over here in the Netherlands just finished his rear axle;

More info here
Drive it like you stole it...
User avatar
Maurizio
Verde
Verde
Posts: 679
Joined: Wed Dec 01, 2004 4:49 am
Location: the Netherlands, 153.1km from the N'ring :-)

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by Maurizio » Sun Jul 20, 2014 3:49 am

Remco,

the Francia/Schlesser version has a lot more in it then just adjustable camber and toe...
It was a factory trick to let it appear to be a adjustable dion, but it is a independent rear suspension. 8)
(So left side movement doesn't influence right)
Banned.. ? ;-) Daily donky.. ==> BMW 118d Image
E36M3 (3.0) Ringtool :twisted: ==> definitely BANNED!

AR 75 TS Ringtool '90, AR Spider 2000 veloce '79
User avatar
Giuliettaevo2
Verde
Verde
Posts: 774
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by Giuliettaevo2 » Sun Jul 20, 2014 6:07 am

Yeah, i got the independent part.

But i'm wondering how much difference there would be between this very complicated set-up and an adjustable de-dion like Stan's.
Drive it like you stole it...
User avatar
MD
Verde
Verde
Posts: 2330
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by MD » Mon Jul 21, 2014 12:18 am

is a independent rear suspension.
All very well I guess but who says it actually needs it?
Transaxle Alfas Haul More Arse
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Mon Jul 21, 2014 2:08 am

This car was destined for Australia to race in the touring car series but the plug was pulled back then . This suspension was the only way Alfa could " bend" the rules to go independent which I'm sure at that high end of racing must have been better . I doubt any of us would have the hours and team budget ( and driving skill) to set this up to be most effective . A friend of mine who made the Gotech system worked as a team mechanic on this car many years ago and said it was really complex but extremely brilliant .
I struggle just to set my spring rates and Antiroll bar settings on the front on my own car . Glad I don't have to deal with the back .
Chris who owns the car now is going to race in the classic touring car series. So I will keep an eye on it and follow its progress .

Remco that kit made by "stan75" Netherlands is excellent . Now that's something he should sell and simple to set up the rear end .
User avatar
Giuliettaevo2
Verde
Verde
Posts: 774
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by Giuliettaevo2 » Mon Jul 21, 2014 9:58 am

If there is interest he'll sell it. :wink:
Drive it like you stole it...
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Tue Jul 22, 2014 11:11 am

I would be interested depending on price . How do I get hold of him . Can you PM me his details .
User avatar
Giuliettaevo2
Verde
Verde
Posts: 774
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by Giuliettaevo2 » Thu Jul 24, 2014 10:41 am

Drive it like you stole it...
User avatar
xrad
Verde
Verde
Posts: 516
Joined: Mon Feb 08, 2010 9:45 am
Location: Canton, Ohio

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by xrad » Fri Jul 25, 2014 6:18 am

Love to see more driveshaft pics....
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by kevin » Wed Aug 06, 2014 2:58 pm

Some more pics I found on my phone of this car . Interesting charge cooler set up .
Attachments
la_strega_nera
Platinum
Platinum
Posts: 494
Joined: Tue Feb 21, 2006 10:05 pm
Location: Sunny Euro-Brisney

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by la_strega_nera » Wed Mar 04, 2015 9:25 pm

kevin wrote:Four wheel steering :shock:
The rear anti roll is connected through universals to the toe adjustment on hub .
Been staring at this pics for the last couple of minutes trying to figure out what the hell is going on...
I don't think it's 4 wheel steer - or adjusting the toe - I think it's using the link from the end of the sway bar to the upright as an upper link - stopping it from behaving as a swing axle setup, and making it into a proper Short and Long (very long) Arm suspension - clever use of existing mounting points (would also explain why the roll cage is heavily braced to the sway bar mounting points!).

The chargecooler setup doesn't look that out of the ordinary to me, except for the horrendous welding on the front edge of the end tank.
I'm curious as to what the door trim material is though.
1966 GTV
1982 Suzuki "Bathurst" Katana
1995 Cagiva Mito (race kitted 250 powered)
User avatar
75evo
Verde
Verde
Posts: 856
Joined: Tue Oct 11, 2005 8:56 am

Re: Independent Dedion - Francia/Schlesser 75 Turbo

Post by 75evo » Wed Mar 04, 2015 11:14 pm

Ben,

I think they MIG welded aluminum.
