Vented rear disk fitment

Post by zambon » Mon Jul 21, 2014 5:12 pm

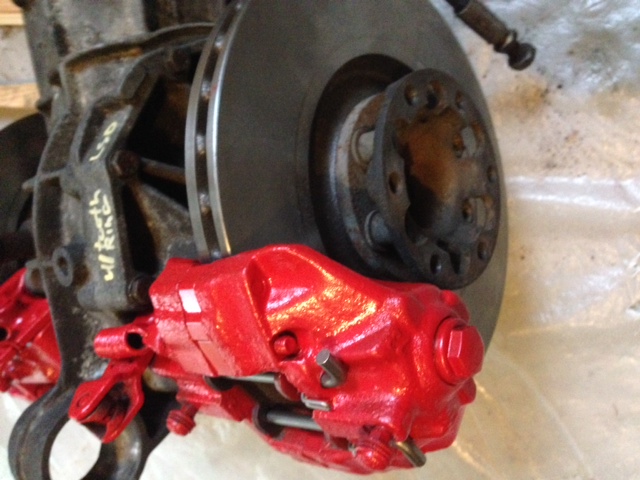

I am working on installing some vented rotors on my transaxle and I am struggling with fitment. Every brake rotor I have ever installed had the thicker side facing in, but in this instance there does not seem to be enough room on the inside piston when I install them that way.
Which way is correct? (The rotors and caliper spacer kit are from Performatek).
Attachments
photo 1.JPG
photo 1.JPG (120.74 KiB) Viewed 2985 times
photo 2.JPG
photo 2.JPG (116.51 KiB) Viewed 2985 times
User avatar
zambon
Verde
Verde
Posts: 549
Joined: Sun Apr 03, 2005 8:01 pm
Location: Northern Wisconsin

Re: Vented rear disk fitment

Post by zambon » Sun Jul 27, 2014 4:07 pm

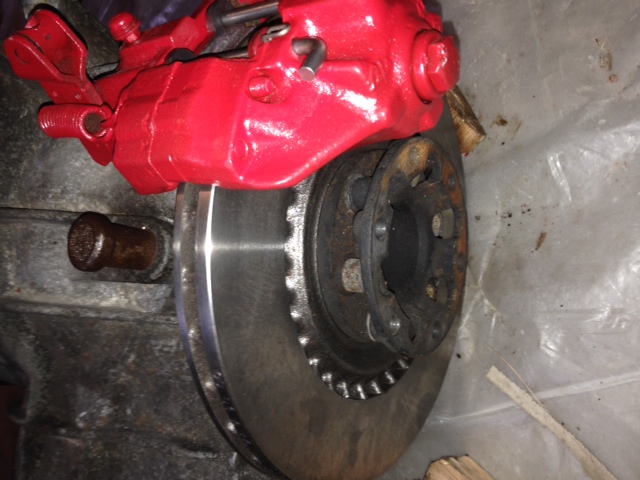

Update: After moving parts around for a while, I am just going with the orientation shown in the second photo. I suspect that it is not the correct way to to go, but that is the only way it seems to fit.
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Vented rear disk fitment

Post by kevin » Tue Jul 29, 2014 7:33 am

They can only fit one way . Did you buy this kit recently ? I did not know you could get vented rear discs anymore !
Jim K
Verde
Verde
Posts: 1716
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: Vented rear disk fitment

Post by Jim K » Tue Jul 29, 2014 10:14 am

You can easily adapt from Peugeot OR, order from Brembo the original vented ones! 8)
Jim K.
kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: Vented rear disk fitment

Post by kevin » Tue Jul 29, 2014 2:03 pm

Geez, and I went to all that effort to make bells and adapt to fit in my old race car . :shock:
Jim K
Verde
Verde
Posts: 1716
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: Vented rear disk fitment

Post by Jim K » Tue Jul 29, 2014 6:38 pm

I don't blame you Kev... Leave it to us poor people to come up with such cheap solutions! :wink:
Jim K.
User avatar
zambon
Verde
Verde
Posts: 549
Joined: Sun Apr 03, 2005 8:01 pm
Location: Northern Wisconsin

Re: Vented rear disk fitment

Post by zambon » Tue Jul 29, 2014 7:30 pm

My disks that are shown in the photos are the Brembos.
Jim- Do you think I will be ok if I run them with the thicker side facing out (as they appear in the second photo)?
Jim K
Verde
Verde
Posts: 1716
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: Vented rear disk fitment

Post by Jim K » Tue Jul 29, 2014 9:26 pm

I have a new set of these and the relative calipers, but never put them on the car as I never saw the need, even after measuring disc temps on track. As for how to mount them, I believe there's only one possible way to do it so they fit. If they can be mounted both ways, we'll have to look for Turbodelta and SZ rear brake pics to see the factory way.
Jim K.
User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Re: Vented rear disk fitment

Post by Mats » Wed Jul 30, 2014 3:20 am

Surely the vents go outboard? The thickness builds outwards and the outer parts of the calipers are moved out for obvious reasons.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
User avatar
yetyGTA
Silver
Silver
Posts: 41
Joined: Mon Aug 19, 2013 11:51 am
Location: Slovakia
Contact:

Re: Vented rear disk fitment

Post by yetyGTA » Mon May 28, 2018 3:51 am

Since it is not that common to find these. Sharing with you the ebay listing. The same seller I bough aluminium radiator from.

Spacers
https://www.ebay.com/itm/Alfa-romeo-SZ- ... %7Ciid%3A1



SZ rear wented discs
https://www.ebay.com/itm/Alfa-Romeo-ES3 ... %7Ciid%3A1
