zambon · Post by **zambon** » Sun Jan 01, 2006 8:12 pm

Peter Florence sent me photos of the fuel pump relay on a v3 board. I cant figure out how to resize the photos with this computer's equipment, but I would be glad to email them to anyone who is building a V3 board.

enzo · Post by **enzo** » Tue Jan 03, 2006 2:02 am

oh, can you send me the pics? a will order a new V3 kit soon
epotenza (at) gmx.net

thanks

firefox · Post by **firefox** » Tue Jan 03, 2006 5:54 am

Hei enzo

Me too, please!

Maybe I'll also order one kit

Use V3 on the 75 and the MS1 on the Sprint

Steve R · Post by **Steve R** » Tue Jan 03, 2006 7:12 am

Hi Zambon,

Yes please, send me a copy too !

regards
Steve

zambon · Post by **zambon** » Tue Jan 03, 2006 10:51 pm

Steve and Firefox,
Could you please pm me your email address? The photos are too large to attach to the PM on the board. They would be useless if they were resized.

enzo · Post by **enzo** » Tue Jan 03, 2006 11:57 pm

zambon

tkanks for the mail!

firefox you go it

Steve R · Post by **Steve R** » Wed Jan 04, 2006 2:12 am

It's steven_rosser at yahoo.com Just replace " at " with "@"

Cheers
S

firefox · Post by **firefox** » Wed Jan 04, 2006 3:20 am

My adress is "andreas.messerli at ubs.com"

thanks for sending it!

zambon · Post by **zambon** » Wed Jan 04, 2006 9:11 pm

Steve and Firefox,
I sent off emails to you. If they dont work right, I will resend.
-James

firefox · Post by **firefox** » Wed Jan 04, 2006 11:58 pm

Thanks James!

zambon · Post by **zambon** » Tue Jan 17, 2006 12:13 pm

It is hard to see in the photos, but Q2 is swapped out and the ztx transistor is installed in its place. Writing faces the db37 connector.

zambon · Post by **zambon** » Thu Jan 19, 2006 1:54 am

Base and collector of the 3904 (q19) are both connected to 1k resistors. Q19 emitter is in its normal location. 1k resistors then are then connected to the holes for R16. Base-resistor connects to the lower R16 hole, while collector-resistor connects to the upper R16 hole.
I have a jumper going from the right hand R40 hole to the hole marked S12. (R40 is removed).
These are my interperitations of the old schematic and the photos refered to above.
I have yet to try it in the car.

zambon · Post by **zambon** » Thu Jan 19, 2006 2:13 am

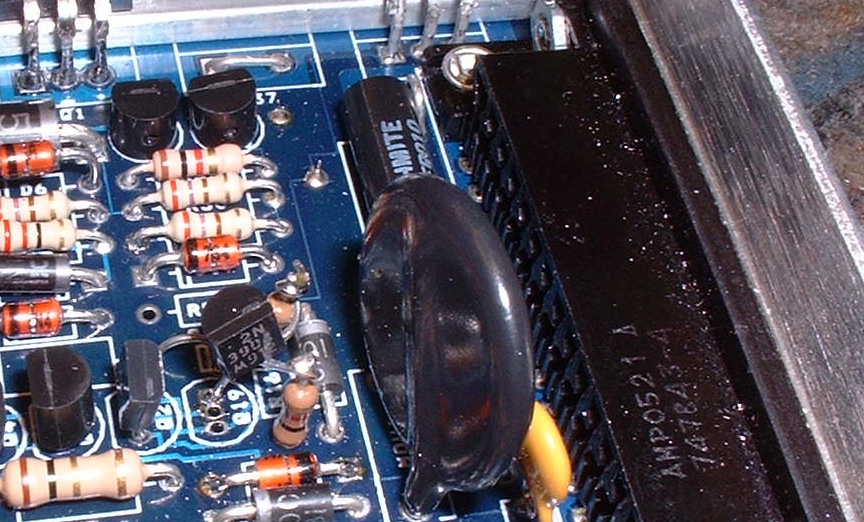

Here is a cropped down version of one of Peter F´s photos:

enzo · Post by **enzo** » Thu Jan 19, 2006 3:48 am

isn't there any diode like the old shematic?

Murray · Post by **Murray** » Thu Jan 19, 2006 5:39 am

Zambon I have attempted to show your suggested circuit for the fuel pump mod on the V3 board.Could you tell me if I am understanding correctly.
In addition I am just starting assembly and wonder if the other changes recommended by Steve Rosser are also required on the V3 board :
I'm using Steve's step numbers which apply to the original MS board not V3
1) Step 47 - he suggests using 1600ohm resistor for R10 not the 390 ohm spec'd- I note that V3 calls for a 1000 ohm resistor so I guess this has been dealt with ?
2) Step 48 - Install and solder D5 {1N4001DICT-ND}. This is the famous Wing Diode - you will want this (reduces tach signal false-triggering).Steve recommends the use of an IN4004 diode instead.What is the equivalent step for V3 and is the diode dealt with ? (I see that D5 is now rated 100V on the V3 board)
3) Step 51 Steve says use a 0.01uF cap.in lieu of 0.001uF spec'd.I note that V3 still specs 0.001 so I guess this change is still required ?
4) Step 53 - I guess resistors must still be changed from 2.49k ohm to 2.2k ohm to read Bosch sensors ?
5) Step 54 - Steve says to not install the jumper per manual but instead to use XG1 for better ground.Is there an equivalent fix req'd for V3 or is it taken care of ?
6) Step 59 - Steve says that D7 D22 & D23 are not required.V3 shows only D7.Is it still not required ?

I'm hoping that you have progressed far enough in your assembly to have come across these issues,if not maybe someone else is ahead of us and can straighten us out.

V3 fuel pump mod photos
