Helloo from Serbia! (My 24v conversion)

Please post a pic of yourself or your car tell us about yourself and let us know where you are from.
User avatar
Zamani
Site Admin
Site Admin
Posts: 1671
Joined: Sun Nov 28, 2004 8:20 pm
Location: Cameroon

Post by Zamani »

Killaz,

You got some video clips of your fabricated muffler?
Dr. Alban

User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Post by Mats »

Low end torque/driveability.

They probably hit their horspower goal and started to fiddle with the low/midrage instead.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!

Greg Gordon
Verde
Verde
Posts: 1552
Joined: Mon Nov 29, 2004 7:06 pm

Post by Greg Gordon »

I think that's exactly right.

User avatar
Daniel
Platinum
Platinum
Posts: 276
Joined: Sat Apr 23, 2005 11:12 pm
Location: Brisbane, Australia

Post by Daniel »

My 164 3.0 24v engine had (No longer has :wink: ) the thin runners which measure about 38mm ID but the plenum ports are 43mm ID. The rubber couplings from the plenum to the runners step down then the bottom of the runners ftare back up to 43mm ID again where they bolt to the injector manifold plate.
The 164 3.0 12v in my Dads GTV has even thinner runners again - they seem to be about 35mm ID.
And my old 2.5 (before I oppened them out) had even smaller still.
Plenum ports on the 164 24v can be opened up to 46mm or even a bit more.
I fabricated my own runners to match this and then matched the injector manifold to this as well.

Has anyone tried the 164 24v runners on a 12v - I'm thinking of bolting my old ones on my dad's car.
Attachments
The new runners
The new runners
08-01-13 004.jpg (129.87 KiB) Viewed 6530 times

User avatar
rz
Platinum
Platinum
Posts: 390
Joined: Mon Jan 17, 2005 2:23 pm
Location: belgium

Post by rz »

nice :lol:
does the original brake booster still fits?

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Post by killaz »

rz: For 24v engine you must have shorter brake booster.

@Zamani: Sorry, still nothing about the vid. Friend even didn't made new silencer. :( As soon as he does that, I'll post some sound or video.

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Post by killaz »

Just to rise my topic a bit...

Plenum is welded. Only thing to is to polish internal edges and make new liners. I've attached power steering pump, since car had this option. You'll probably notice that pump differs from original - I took one from AR 164 V6TB and pump mount is from AR 156 V6. Pretty nice mixture of Alfas inside... :lol:

Friend of mine took a look at ECU and found that this is one of latest BOSCH M1.7 versions. It has a code 832 which tells that it is made for 231 HP. For rest of you with 24v, this list may be interesting (codes for ECU's and output they handle):

ALFA 164 3000 V6 24V 210CV BOSCH M1.7 288-8.751 27C256 DIL 5807 A288_751.DRV
ALFA 164 3000 V6 24V 210CV BOSCH M1.7 661-7.024 27C256 DIL 4240 A164_661.DRV
ALFA 164 3000 V6 24V 210CV BOSCH M1.7 663-6.749 27C256 DIL E918 A663_749.DRV
ALFA 164 3000 V6 24V 210CV BOSCH M1.7 663-7.333 27C256 DIL F62B A164_663.DRV
ALFA 164 3000 V6 24V 231CV BOSCH M1.7 832-8.709 27C256 DIL 6907 A164_832.DRV
ALFA 164 3000 V6 24V 231CV BOSCH M1.7 834-8.710 27C256 DIL C50E A834_710.DRV
ALFA 164 3000 V6 Q4 231CV BOSCH M3.71 301-7.906 27C512 PLCC CCC2 AL164_Q4.DRV
Attachments
Plenum almost finished...
Plenum almost finished...
Plenum najnovije.jpg (79.94 KiB) Viewed 6249 times
44mm ID
44mm ID
Plenum najnovije 2.jpg (74.26 KiB) Viewed 6250 times
Power steering pump from 164 V6 TB
Power steering pump from 164 V6 TB
Servo resenje.jpg (89.68 KiB) Viewed 6247 times
Power steering pump and the look from the back of it's mount
Power steering pump and the look from the back of it's mount
Servo resenje 2.jpg (96.41 KiB) Viewed 6248 times

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

To refresh a bit this topic... :)
Here is the new (old) solution for water feed:

Local "clutch expert" did reparation with some interesting material - will see how it performs:

Found steering wheel which suits better :)

Shot of bellhousing and new brake booster (from twin spark) - it allows clearence for 24v...

I've tried to use old mount, but it was impossible...

At the end, I had to replace existing one with original from twin spark. Everything was "easier" after difficult fiting of this "black box"! Brake pedal is now closer to gas pedal (about 15mm)...

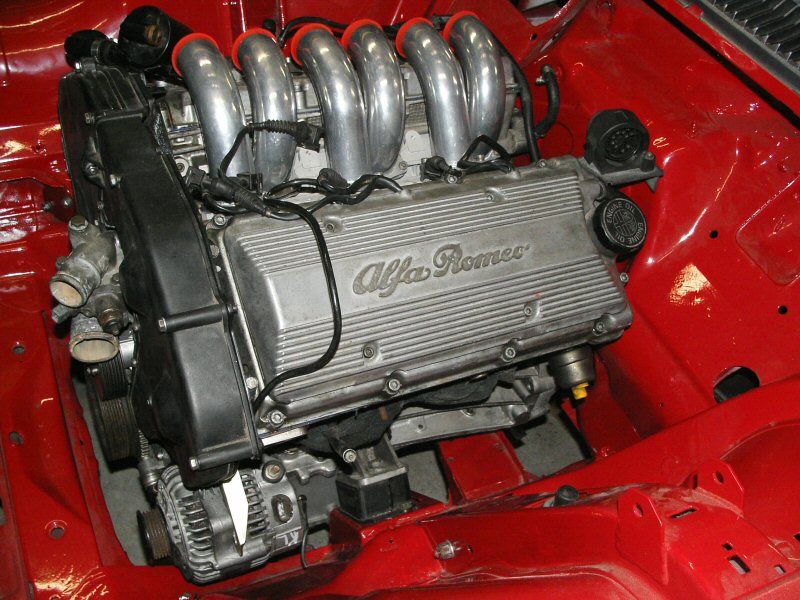

After all done, finally (!) engine slides in... You can see few details were it's a bit tight. :lol:



Day was sunny when she went to local exaust shop... It seems that Zamani will have impressions of my exhaust soon. ;)


User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

Back from the exhaust shop and here is result... 8)

ImageImage ImageImage


6 x 45 mm into 2 x 55 mm into 1 x 60 mm, there's only one straight-through-without- wool muffler for now, neighbors will shot me probably... :lol:

User avatar
PietereQ
Platinum
Platinum
Posts: 466
Joined: Thu Jan 26, 2006 1:53 am
Location: PL/NL

Re: Helloo from Serbia! (My 24v conversion)

Post by PietereQ »

Cool. How much did it cost to make new set of headers?

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

It was a bargain - around 300 euro. :D
What I received for that money;
-Headers
-One flex pipe
-Pipe straight to rear muffler
-Intake runners

Good thing was that I had collectors (3 into 1) and joints already made so overall price was really good. ;)

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

Some new images... :D



User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

Time to refresh my topic with a story and some vid ...

Yesterday we completed wiring and engine responded really nice. It fired up! :D Have to rebuild rear brake system - main pipe actually, and car will be put back in garage until spring when I'll finish body.

here's a short video:

http://www.youtube.com/watch?v=zuXNvFfeExA

A note* Exhaust system is pretty brutal- since it contains only one straight through "muffler" but potential for sound that I expect is really good. (I know that there is at least million different tastes and different ears so I won't offend if you criticize what you hear here) :)

Project lasts so long and this was the best time to receive some blessings through firing this beauty. :)



One more street video:

http://www.youtube.com/watch?v=vWca2wKthjg

User avatar
killaz
Platinum
Platinum
Posts: 217
Joined: Mon Nov 19, 2007 2:44 am
Location: Belgrade, Serbia

Re: Helloo from Serbia! (My 24v conversion)

Post by killaz »

Just to refresh this topic...




User avatar
Giuliettaevo2
Verde
Verde
Posts: 783
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: Helloo from Serbia! (My 24v conversion)

Post by Giuliettaevo2 »

That is one very nice 75. 8)

Any new pics of the engineroom?

Very good work!
Drive it like you stole it...
