Project 2 : front mount SA GTV 3.0 - Sei diff

Alfa Romeo ONLY please!
casta28
Silver
Silver
Posts: 21
Joined: Wed Nov 05, 2014 9:31 am

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by casta28 »

do you have pictures of the new driveshaft with bmw differential?

I've infinite problems with the mix bmw rubber joint/cv rear joint, now we try with double cv joint but now I see you advise against to use it..

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

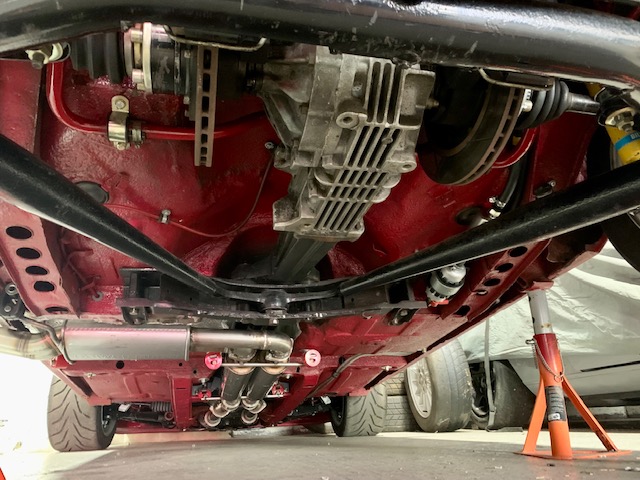

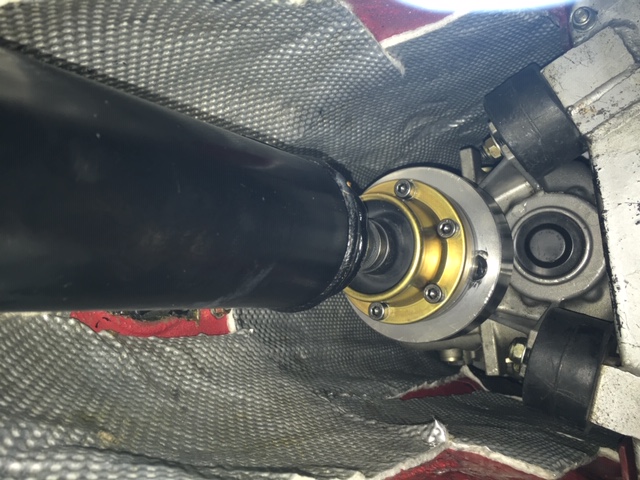

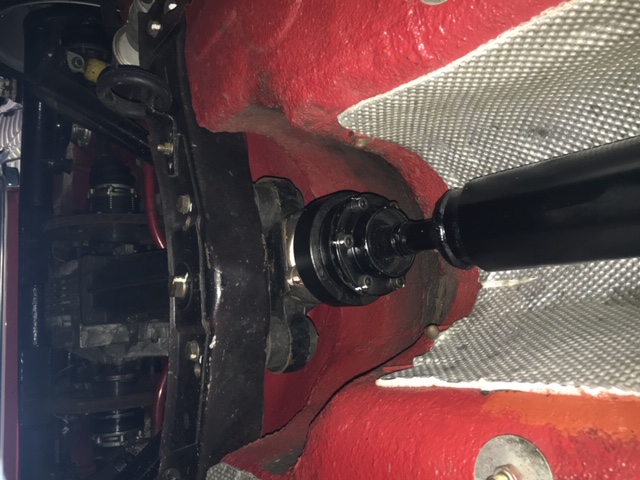

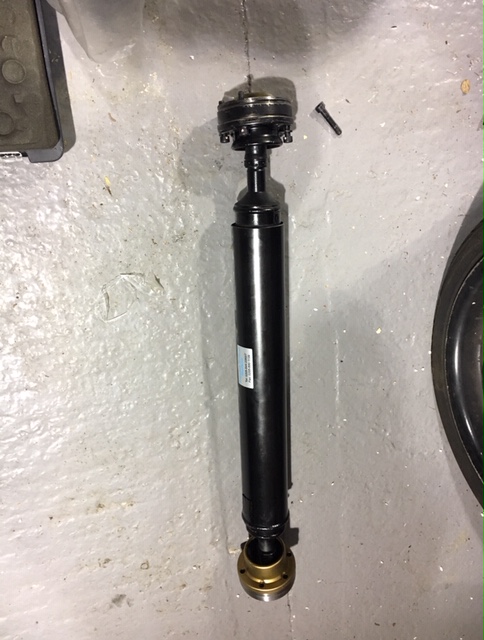

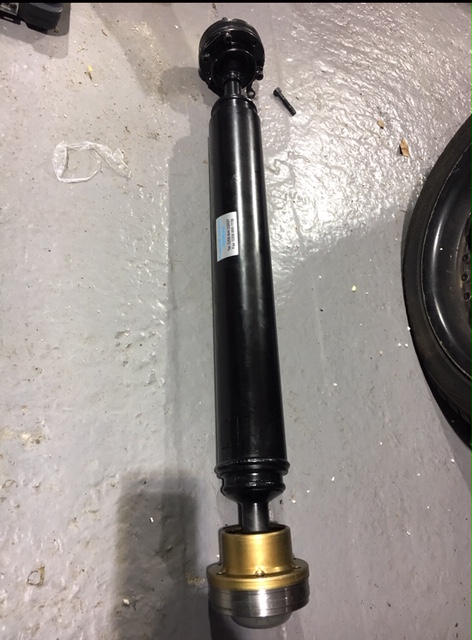

I'm still using the sedan diff in my car with a one pice prop of 850mm long with two CV and a torsion resilient tube with no problems and perfectly smooth. I had problems when I had universals as the angles were greater than 3degrees and off in both planes . This is my prop
Attachments
Last edited by KevinR on Sat May 25, 2019 2:09 pm, edited 1 time in total.

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

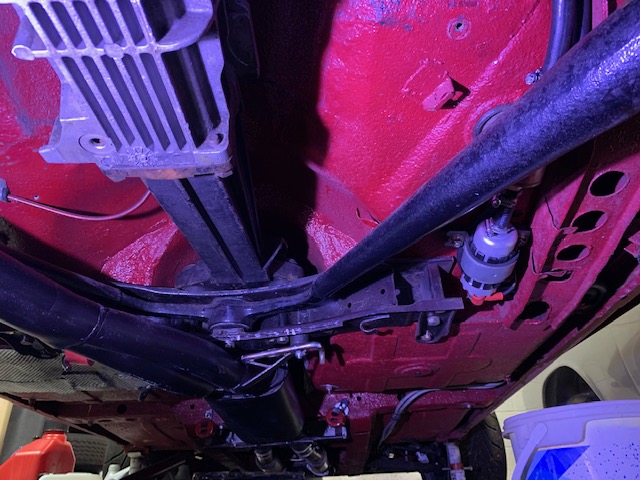

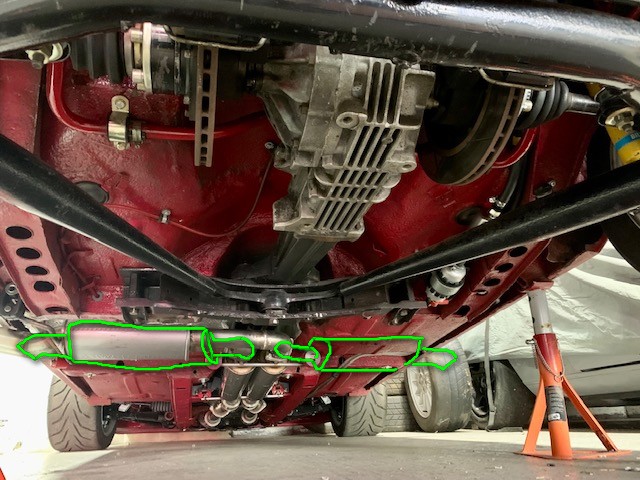

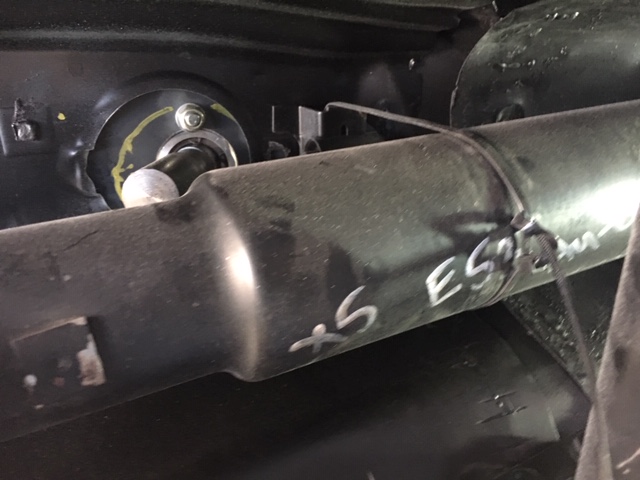

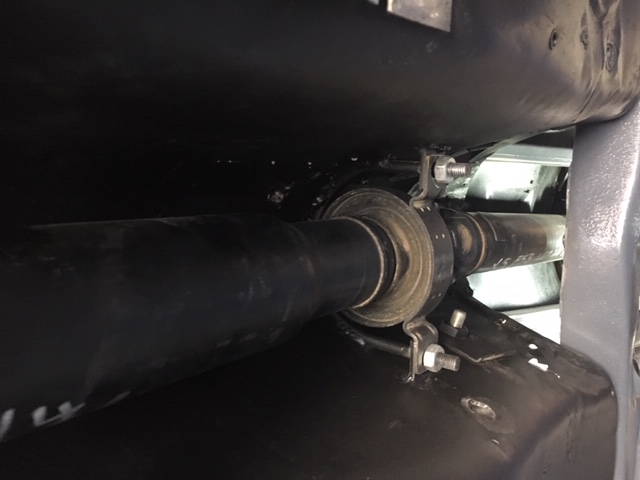

This is my friend's car who has used my flywheel and clutch set up with same ZF box as mine. He has used the X5 3.0 diesel prop with CV at back , rubber at front . No problems at all.
Attachments

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

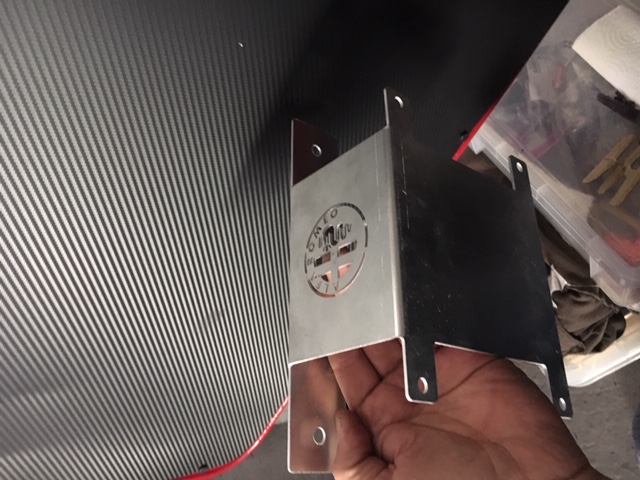

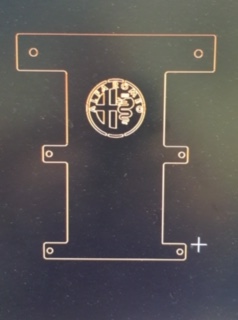

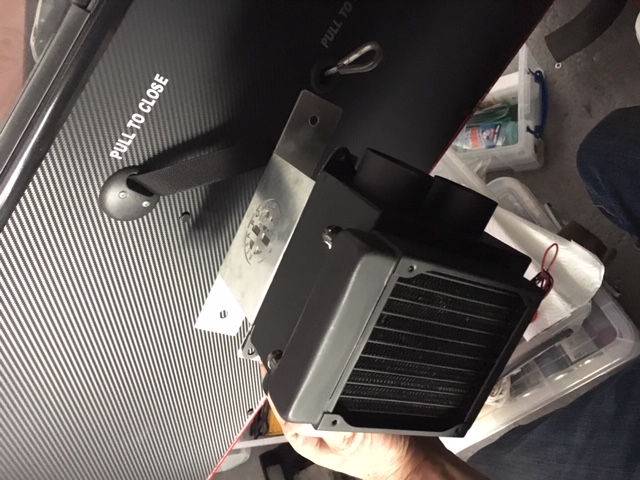

On the previous page I was working on the dash and heater unit. I have finally got my heater bracket made . Can’t help myself by putting and Alfa badge on it even though it’s under the dash and no one will eve see it 😂😂😂
Attachments

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

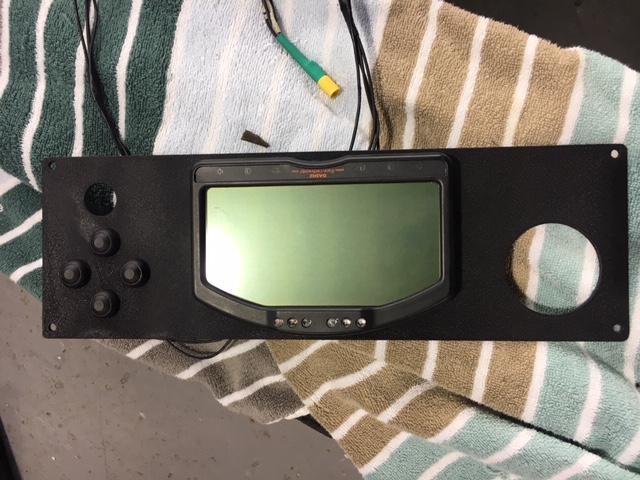

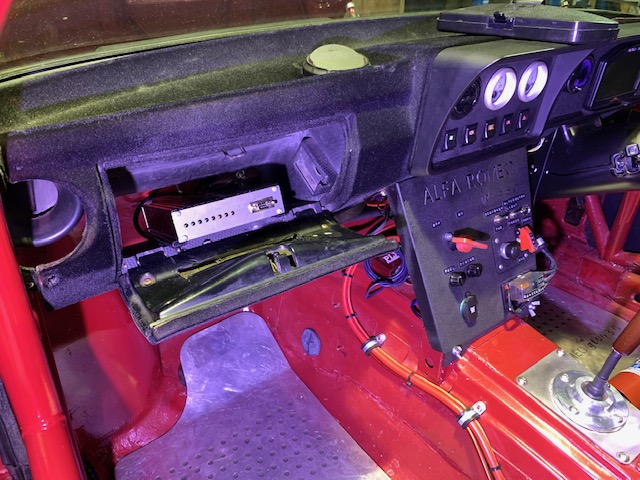

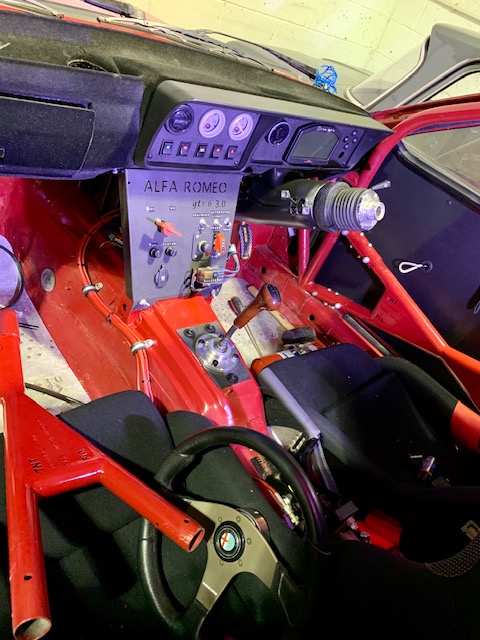

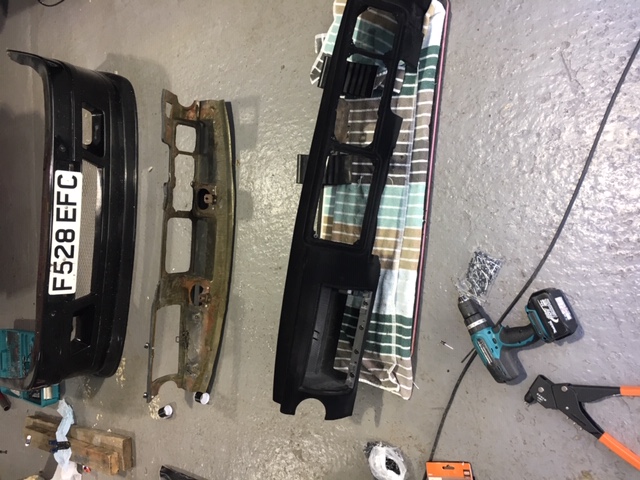

My dash is in .. thanks again to Richard for flocking it . Waiting for my fuel sender gauge to fill vacant hole .
Slow progress as many projects on go but should be ready for trackday next month ! Thinking dash looks better so car should go faster :wall:
Attachments

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

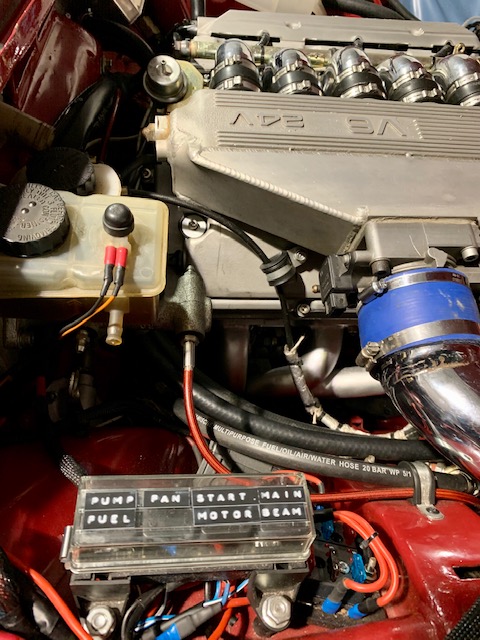

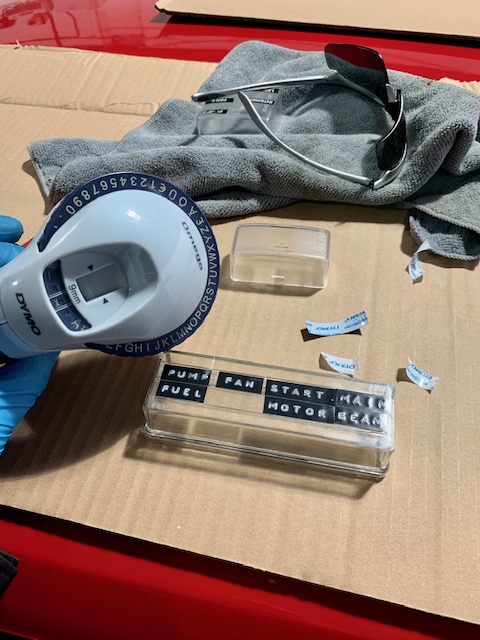

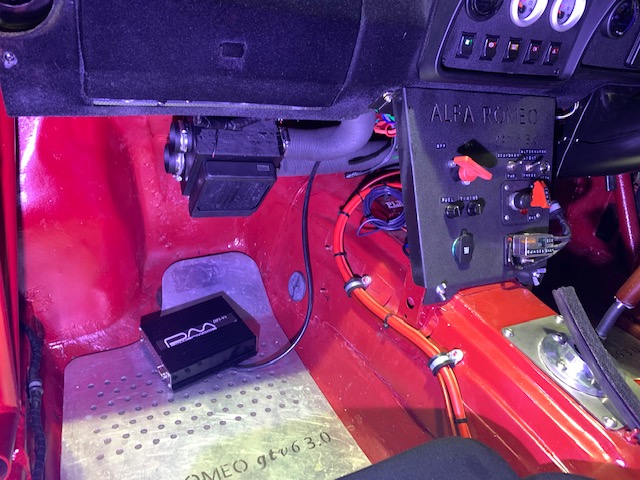

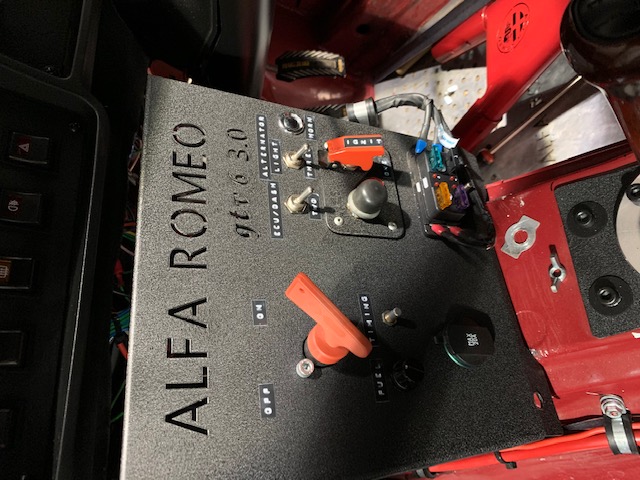

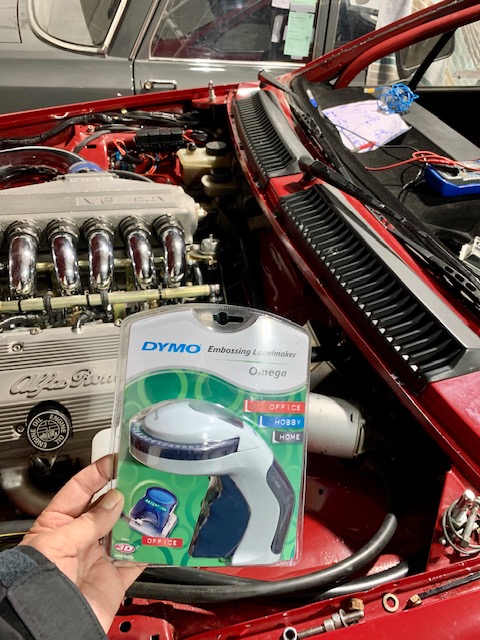

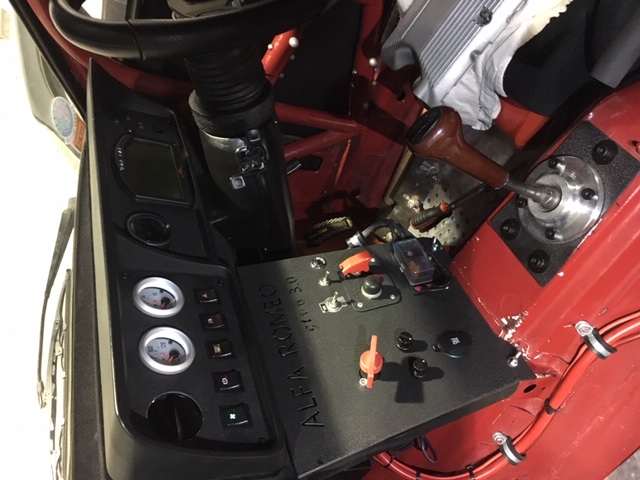

Sadly this car has not been getting much use this season due to all the work on the 2.5 and Junior, however I thought i need to do some work on the electrics in preparation for the heated front windscreen. Then I realised I had forgotten what are all my relays and fuse boxes were for so hence I ordered an old school label gun for an old school car ! ( old school operator)
Another reason to label the starter panel is my mates often move my car around when I'm away in SA and now I dont need to explain all the switches and sequence :):):)
Strangely enough everyone wants an old school label gun, brings back memories !

bteoh
Platinum
Platinum
Posts: 205
Joined: Wed Dec 15, 2004 7:44 pm
Location: Perth, Western Australia

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by bteoh »

Kevin, looks brilliant and great attention to detail :D

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

It’s been a while since I have posted on the track car but with all that’s happened this year I have just been doing tweaks here and there . The carburettor GTV 3.0 has been sucking up time as well as having loads of fun doing trackdays (in between the lockdowns) in a twinspark 75 belonging to a mate of mine .

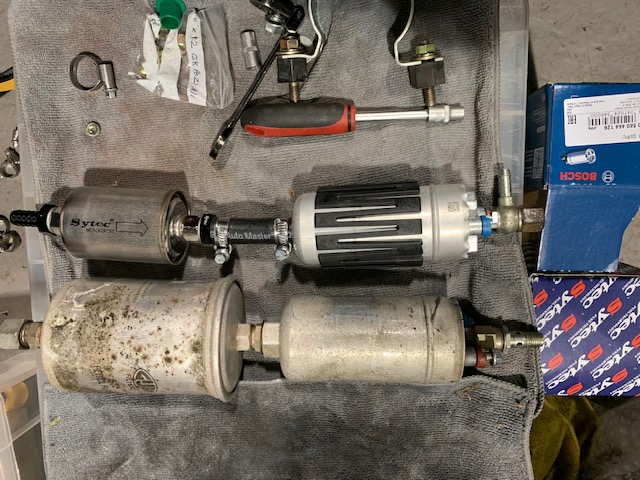

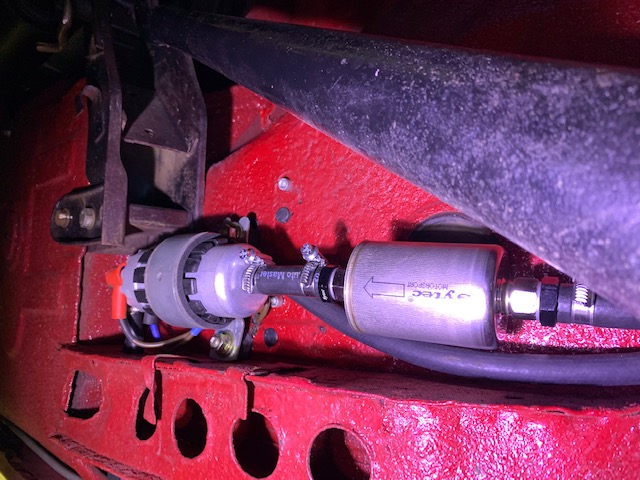

With the help of the maestro JK I have sorted the my noisy fuel pump . Well let’s say it becomes noisy as when fuel is low . Not that the fuel is so low that it’s sucking air but my existing the fuel pump was 260L/Hr seems to be circulating way to quickly. The return line goes directly into an internal swirl pot which is topped up with a red top facet pump thus the fuel does not have time to cool. JKs new recommended Bosch 0580 464126 pump at 148L/hr has done the trick . This pump is capable for over 300hp which he uses on the high boost 1.8T’s .

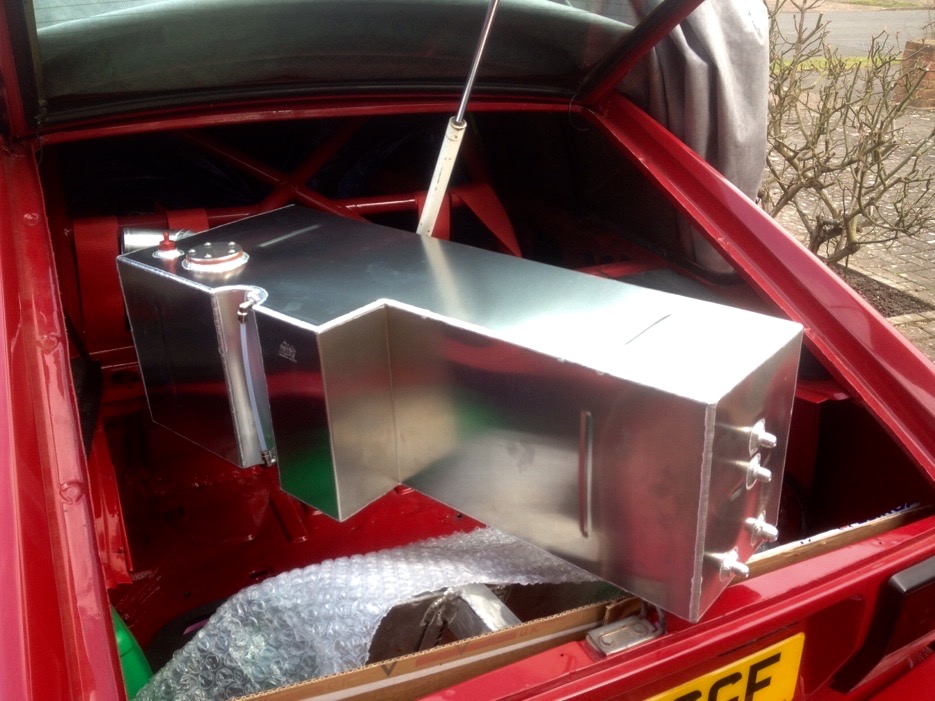

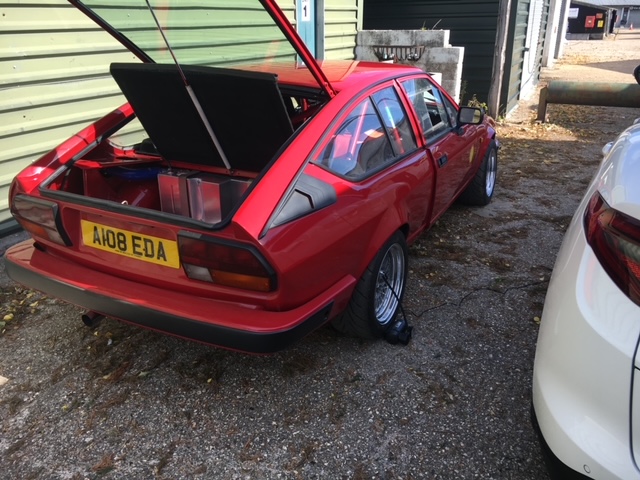

Some pics of the new pump and side view of the tank. You can see all the outlets from the tank. Must say this tank shape has worked well for packing the wet weather wheels.
Attachments

KevinR
Verde
Verde
Posts: 507
Joined: Sun Mar 20, 2016 2:46 pm

Re: Project 2 : front mount SA GTV 3.0 - Sei diff

Post by KevinR »

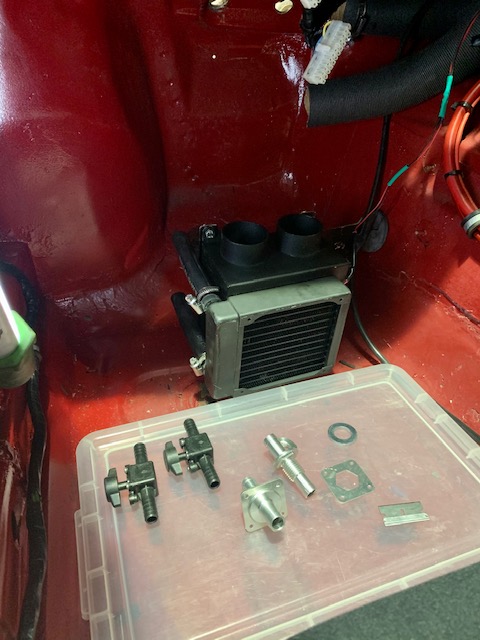

Sometimes you install a new part then realise it’s not in the correct position. In this case my heater unit needs to fit be fitted to a lower position to keep the pipe work lower than the reservoir bottle . (air trap) . My reservoir bottle sits quite a bit lower than normal due to the roll cage bars triangulating into the engine bay. I have also installed two gate valves on the heater hose. Some pics to follow
Attachments
