I'm just going to answer one of the posts, ok?
There must be something else going on I think, there is just no way you can shear off the bolts with the engine torque/momentum. The halfshaft CVJs see the same torque x gearratio (plus/minus maximum wheel torque even) and they are fine. Where there any parts made of aluminum? The bolts are critical, unless they provide (and can keep) the correct preload the CVJ will slip back and forth in the companinon flange and may shear off the bolts or they will work themself loose.
Steel flange, correct bolts (12.9) at the correct torque is a must, washers are critical too, must be made from hard enough steel (OEM stuff basically). Make sure the surfaces are clean too to get as high friction as you can, too much grease in the CVJ working it's way out in the bolt holes can be bad.
There must be something else going on I think, there is just no way you can shear off the bolts with the engine torque/momentum. The halfshaft CVJs see the same torque x gearratio (plus/minus maximum wheel torque even) and they are fine. Where there any parts made of aluminum? The bolts are critical, unless they provide (and can keep) the correct preload the CVJ will slip back and forth in the companinon flange and may shear off the bolts or they will work themself loose.
Steel flange, correct bolts (12.9) at the correct torque is a must, washers are critical too, must be made from hard enough steel (OEM stuff basically). Make sure the surfaces are clean too to get as high friction as you can, too much grease in the CVJ working it's way out in the bolt holes can be bad.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
I'm just going to answer one of the posts, ok?
There must be something else going on I think, there is just no way you can shear off the bolts with the engine torque/momentum. The halfshaft CVJs see the same torque x gearratio (plus/minus maximum wheel torque even) and they are fine. Where there any parts made of aluminum? The bolts are critical, unless they provide (and can keep) the correct preload the CVJ will slip back and forth in the companinon flange and may shear off the bolts or they will work themself loose.
Steel flange, correct bolts (12.9) at the correct torque is a must, washers are critical too, must be made from hard enough steel (OEM stuff basically). Make sure the surfaces are clean too to get as high friction as you can, too much grease in the CVJ working it's way out in the bolt holes can be bad.
There must be something else going on I think, there is just no way you can shear off the bolts with the engine torque/momentum. The halfshaft CVJs see the same torque x gearratio (plus/minus maximum wheel torque even) and they are fine. Where there any parts made of aluminum? The bolts are critical, unless they provide (and can keep) the correct preload the CVJ will slip back and forth in the companinon flange and may shear off the bolts or they will work themself loose.
Steel flange, correct bolts (12.9) at the correct torque is a must, washers are critical too, must be made from hard enough steel (OEM stuff basically). Make sure the surfaces are clean too to get as high friction as you can, too much grease in the CVJ working it's way out in the bolt holes can be bad.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Re: A 'budget' race car is born (slow delivery)

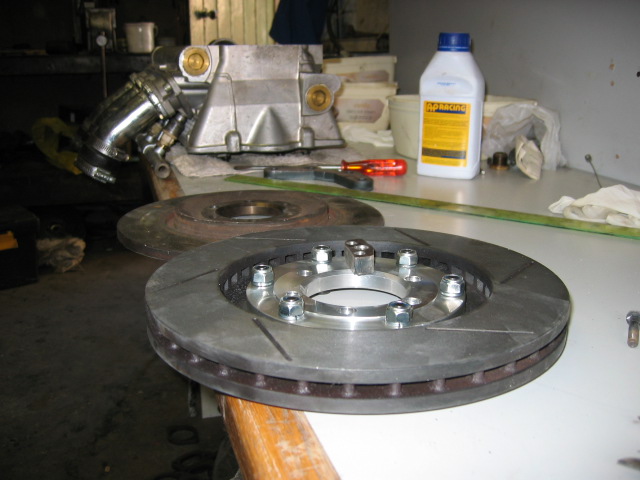

Update. Had some rear vent discs made that came out pretty well as i could not get any SZ ones. once again adding more weight but there is a 3hr endurance race coming up so trying to get prepared.
- Attachments
-
- IMG_2662.JPG (86.29 KiB) Viewed 5544 times
Re: A 'budget' race car is born (slow delivery)

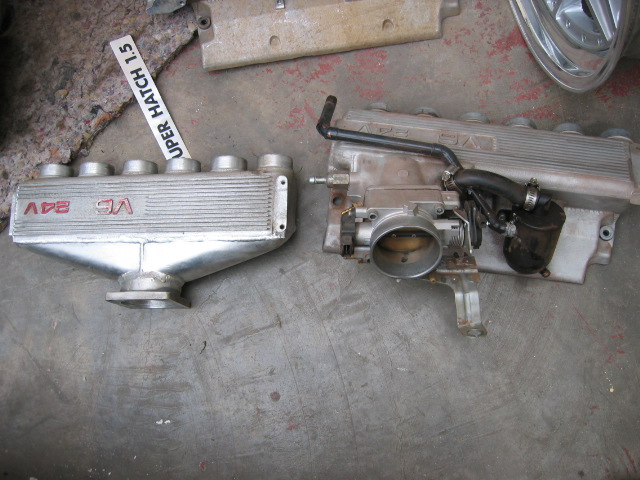

Decided to chainge the intake of plennum to the centre . Still working on a smooth lightweight pipe from throttle body tp cone filter behind headlight.
Anyone got any views on how much bigger you can go on the diameter of this pipe in relation to the throttle body if its lenght is about 500mm ?
Anyone got any views on how much bigger you can go on the diameter of this pipe in relation to the throttle body if its lenght is about 500mm ?
- Attachments
-
- IMG_2664.JPG (112.64 KiB) Viewed 5541 times
Re: A 'budget' race car is born (slow delivery)

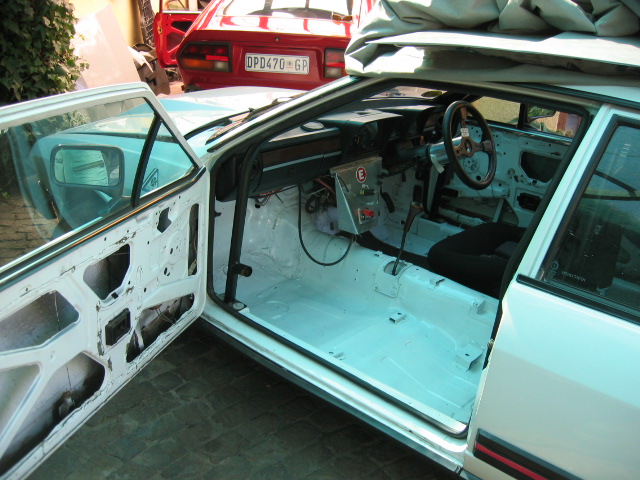

I cant find the thread but Patzo was looking for pics of a white interior. Some pics when I sprayed the car.
- Attachments
-
- IMG_2660.JPG (128.36 KiB) Viewed 5535 times
Re: A 'budget' race car is born (slow delivery)
Kevin, 100mm I.D. is good for about 500BHP
Transaxle Alfas Haul More Arse
Re: A 'budget' race car is born (slow delivery)
cool, I've got some 90mm stormwater pipe laying around under the house, so that should give about 450bhp - that'd be almost enough
Jason
1983 GTV6 2.8 litre
1983 GTV6 2.8 litre
Re: A 'budget' race car is born (slow delivery)
The more I look on those African beauties the more I'm convinced that white is THE color for GTV6. Yup my next gtv6 will be white
Kevin could you give us some more info on those rear rotors?
Kevin could you give us some more info on those rear rotors?
Re: A 'budget' race car is born (slow delivery)
PietereQ wrote:The more I look on those African beauties the more I'm convinced that white is THE color for GTV6. Yup my next gtv6 will be white
???? are you on drugs?
red is clearly the best colour!
don't get me wrong, white is nice, but red is the gun choice, closely followed by metallic grey, black, silver, yellow, green, fuscia (not even sure what that is)....and then white, narrowly in front of baby poo brown (which I think Alfa had the good grace not to inflict on the GTV6)
Jason
1983 GTV6 2.8 litre
1983 GTV6 2.8 litre
Re: A 'budget' race car is born (slow delivery)
If you want a discussion about colours, check out the "Other" topic. Let's keep Kevin's topic about racing ..I have added a bit more to what you said Jason so I will need to borrow your sh*t shield when you've finished with it...
Transaxle Alfas Haul More Arse
Re: A 'budget' race car is born (slow delivery)
no problemo mikey my friend, plenty of room for all behind the wall and I'd appreciate the company as things are quiet around here at the moment!
Jason
1983 GTV6 2.8 litre
1983 GTV6 2.8 litre
Re: A 'budget' race car is born (slow delivery)

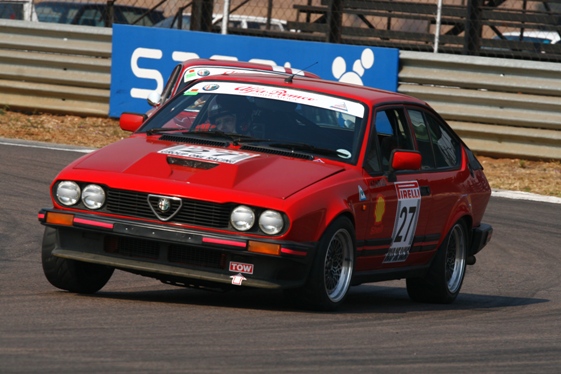

Ok, so while on subject of red and white here are some pics of our two GTV's from same position. I prefer white if the car has other colours on it like red stripe and srickers (biased). Red GTV-Conrad is taking different line defending corner while Im going in deaper before turning in.Which infact is the wrong line on this particular corner. Notice body lean of white car(Full RS suspension and 28mm torsion bars) VS red car (RS front anti roll and 28mm torsion bars).
- Attachments
-
- _MG_2626-re-sized1.JPG (121.85 KiB) Viewed 5357 times
Re: A 'budget' race car is born (slow delivery)

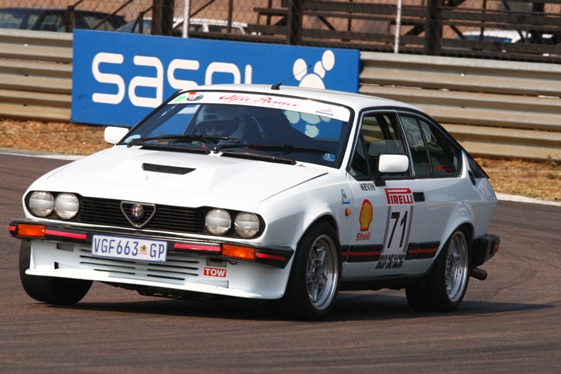

VS RS suspension
- Attachments
-
- _MG_2633-re-sized1.JPG (124.6 KiB) Viewed 5358 times
Re: A 'budget' race car is born (slow delivery)
there is no argument from me that both those cars look fantastic
Jason
1983 GTV6 2.8 litre
1983 GTV6 2.8 litre
