Do you guys ever get to actually drive? :wink:
Maurizio wrote:In the past I 've estimated/calculated the springrate of the torsion bar at the position of the coilover and it was ~30 N/mm when I remember correctly. On the TS I run 104 N/mm (600 lbf/in) coil-over spring and the origional torsion bars. And a huge 32mm hollow anti roll bar. I like the balance the car has a lot. So like Micke said (104+30=) 140 N/mm or more coil-over spring sounds great.

:D much faster typing requered.....


Spring rate or wheel rate or a mix of both? Very confusing...
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
User avatar
Micke
Verde
Verde
Posts: 810
Joined: Sun Dec 05, 2004 11:33 pm
Location: Finland
Contact:

Post by Micke »

Maurizio is using spring rate at the OE shock position for all values.

OK, Andrew, now I understand better what you mean (it also makes more sense!)

I have a friend who tried over 200 kg/cm springs. Undrievable. His setup was much too stiff. I think his car was lighter though.

The good side with coil overs is that trying out and swapping springs doesn't cost like the thich torsion bars. And you get almost any springrate.

The spirngs need to be longer as you said. Misundrzooda for a change :shock: Mine are 8" I recall. 6-12" should be the right ballpark.

BTW, to reduce understanding problems:
kg lb and N are units for weight and mass (not spring rate.)
mm and cm like inch are lengths
Spring stiffness can be described with N/mm, kg/cm, lb/in or similar

Sometimes its really hard to figure out what everybody means (or is it just me :roll: )
User avatar
Maurizio
Verde
Verde
Posts: 680
Joined: Wed Dec 01, 2004 4:49 am
Location: the Netherlands, 153.1km from the N'ring :-)

Post by Maurizio »

Do you guys ever get to actually
Yeh yeh rub it in, but I've got a date set somewhere begin May this year. Stock engine is waiting to get mounted 8)
Just need some time off and less workload of my boss :evil:
Spring rate or wheel rate or a mix of both? Very confusing...
Like Micke stated: calculated towards the origional shock position.
Hey, where did you get your A/R hollow bar?? Sounds cool!
Is my own design, stainless steel, weight/stiffness optimised ---> 6 Kg and ~1,1*stiffer as a 30 mm AR bar.

Banned.. ? ;-) Daily donky.. ==> BMW 325d Image
E36M3 (3.0) Ringtool :twisted: ==> definitely BANNED!

AR 75 TS Ringtool '90, AR Spider 2000 veloce '79
User avatar
Micke
Verde
Verde
Posts: 810
Joined: Sun Dec 05, 2004 11:33 pm
Location: Finland
Contact:

Post by Micke »

I get to drive anyway. I'll fire it up as soon as I can find it under the snow....
User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Post by Mats »

Snow is gone here now! Weeeee! :D

So we are talking "shock-rate"? shock movement in stock fixing points? ok then.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
User avatar
ar4me
Verde
Verde
Posts: 645
Joined: Fri Dec 03, 2004 9:55 am
Location: Southern California

Post by ar4me »

Need a rethink like Barry said.
Huh? His point was simply to make sure there is sufficient clearance where the shaft goes through the stock mounting hole.

What I was thinking and which is not shown in the pics is a bushing and plate/cup/washer (just like found in stock application) that will not rest against the body, but against a "cylinder" that goes against the joint (the threaded shaft will run inside this cylinder). This way the load will be distributed on the shock hounsing somewhat similarly to the stock mounting (and not entirely on the threaded shaft). As mentioned originally the horizontal bolt will have support welded in.

Hopefully, there will be no changes in travel as the shock housing needs to only be lowered a bit in order to allow free movement wihtout rubbing the body (where it would usually rest).

Jes
87 Milano Verde - daily driver - Juliet
87 Milano 3.0 Motronic - budget race car - Roxanne
87 Milano 3.7 24v - race car
(Repeat or do as I say at your own risk - be critical)
User avatar
ar4me
Verde
Verde
Posts: 645
Joined: Fri Dec 03, 2004 9:55 am
Location: Southern California

Post by ar4me »

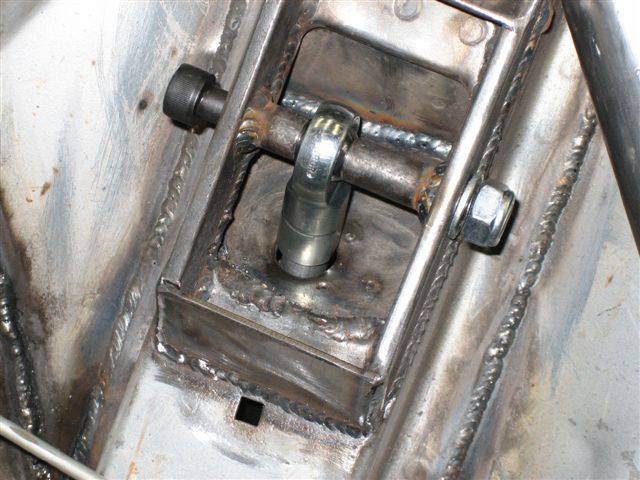

Jonni made the "bushing/spacer" I had in mind and welded in the "tubes" for the horizontal bolt. Will it last beyond turn 1? Guess we are about to find out...
Jes
Attachments
Final mounting.
Final mounting.
This is how it will work.
This is how it will work.

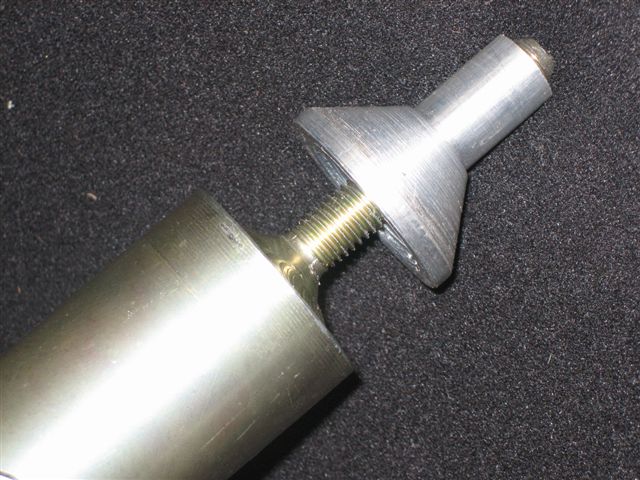

The bushing to distrbute the load on the shock housing.
