Touring Car Suspension

Post by junglejustice »

Anybody have detailed shots of a true "touring car" suspension?

I want to learn more about the REAL differences between a full touring car suspension and say, not even stock, say at least a full RSRacing setup...

Details please. Who made them? Any for sale? Etc.
...to Alfa, or not to Alfa? That is the question...
User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Post by Mats »

Pick up a copy of "Racecar Engineering" and you will see lots of pics and analysis of touring car suspension systems.
Most of the time they are a mix between very special and expensive parts and totally stock parts, all depending on the rules of the class they compete in. Can be quite confusing to say the least...
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
User avatar
junglejustice
Verde
Verde
Posts: 624
Joined: Fri Nov 26, 2004 1:19 am
Location: Granolaville, WA

Touring Suspensions

Post by junglejustice »

Yeah, I was more interested in this type of setup as it relates to Alfas and particularly to the IMSA cars and DTM cars... Popular Science and modernracecars@hondaricerracer.com -world won't have what I am looking for.

Andrew may have some good shots of the suspension on the blue car...?

If we ARE talking about REAL race cars here, then we are talking about more than say, "just" an RS Racing kit though, right?

Would love detailed shots of an IMSA 75 or similar setup.
...to Alfa, or not to Alfa? That is the question...
User avatar
Dennis
Gold
Gold
Posts: 194
Joined: Mon Nov 29, 2004 8:44 am
Location: Amersfoort, The Netherlands
Contact:

Post by Dennis »

'81 GTV6 3.0 QV
'91 75 TS (track)
'02 BMW 330i Touring
User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Post by Mats »

jj: The problem is that the suspension is almost always designed around a set of rules, that means that what was great on the IMSA or Gr. A car is really crap compared to what they would have build had the rules been totally open.

Interesting to see that the IMSA on those pics has the steering rack in front of the hub... one of them seems to have a very special engine, exhaust on the "wrong side" and very interesting flywheel. :o
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Jim K
Verde
Verde
Posts: 1732
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Post by Jim K »

Exhaust on wrong side? Mats, maybe thats an application for RHD cars! :roll:
Jim K.
User avatar
junglejustice
Verde
Verde
Posts: 624
Joined: Fri Nov 26, 2004 1:19 am
Location: Granolaville, WA

Post by junglejustice »

WoW! Yeah, thanks Mats; that makes sense...

Dennis, that was great - thanks for posting!

Hmmm, Mats - money no object: What do you build for the suspension - go the IMSA route or still go with RS and further tweak...?

Completely re-develop?
...to Alfa, or not to Alfa? That is the question...
User avatar
Zamani
Site Admin
Site Admin
Posts: 1671
Joined: Sun Nov 28, 2004 8:20 pm
Location: Cameroon

Post by Zamani »

Definitely a partially re-developed setup. Particularly the upper and lower arms, both should be light and the top one made adjustable (length) like some 105 cars. RSR shocks and springs would be ok. I guess it depends on the group you run with. Where I am you don't really need to heavily modify the 75 to win races.
Dr. Alban
User avatar
Micke
Verde
Verde
Posts: 810
Joined: Sun Dec 05, 2004 11:33 pm
Location: Finland
Contact:

Post by Micke »

Touring cars are very difficult. The problem is you need to use some original parts which are not at all suitable for racing. Thus you end up doing compromises which would be totally unacceptable in real racing (as purpose built) cars.

Here's a picture showing why the GTA Alfas have more camber than normally needed. How to tune such a setup? I rest my case!
Attachments
Alfa 156 GTA camber.jpg
Alfa 156 GTA camber.jpg (41.85 KiB) Viewed 13146 times
User avatar
junglejustice
Verde
Verde
Posts: 624
Joined: Fri Nov 26, 2004 1:19 am
Location: Granolaville, WA

Post by junglejustice »

ha-ha!!!!
...to Alfa, or not to Alfa? That is the question...
User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Post by Mats »

Money no object? hehehe...

double wishbone all around (tubular steel of course), Koni 2812, adjustable (when driving) knife type anti-roll bars, probably widen the car about 50mm per side, etc...
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
User avatar
Andrew.b
Platinum
Platinum
Posts: 205
Joined: Sun Nov 28, 2004 3:21 pm

Post by Andrew.b »

I'll post up some pics of Rouse gtv6 group a suspension as soon as i reduce the size!

Wishbones, billet alloy uprights, adjustable this n that.

cheers
Andrew b
User avatar
81GTV6
Gold
Gold
Posts: 62
Joined: Sun Nov 28, 2004 11:31 am
Location: Dover, New Hampshire
Contact:

Post by 81GTV6 »

Andrew, i was just digging up old raceing posts, got the suspension pics reduced yet?
Jacob Ricciotti

'81 GTV6 3.0
'81 GTV6 Track car
'91 164S daily driver
User avatar
Andrew.b
Platinum
Platinum
Posts: 205
Joined: Sun Nov 28, 2004 3:21 pm

Post by Andrew.b »

for your info

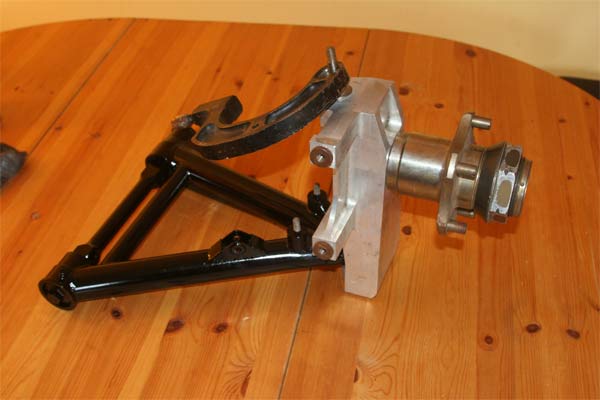

Autodelta 75 IMSA Evo Turbo front suspension parts from ex rouse gtv6 3.7
Attachments
Last edited by Andrew.b on Mon Mar 27, 2006 1:29 am, edited 1 time in total.
Andrew b
User avatar
Andrew.b
Platinum
Platinum
Posts: 205
Joined: Sun Nov 28, 2004 3:21 pm

Post by Andrew.b »

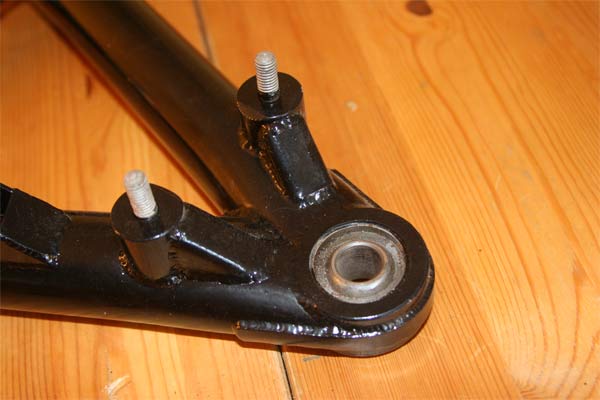

more
Attachments
Andrew b
