JK 24v 3liter ..at last!

Post by Jim K »

Well, it came alive two days ago and it drove a couple of miles to the exhaust shop on headers alone...noisy trip! Here it is, coming out of the shop:
http://www.youtube.com/watch?v=JwFK8lncd8o
Will pick it up on Monday. its running the std 164Q4 management and it'll stay that way with just mapping on the dyno after the first ~2000km. A new wiring harness will be tailor-made for this installation, as I want everything to look oem. Lets see how much power this thing will show!
Jim K.

User avatar
Michael
Site Admin
Site Admin
Posts: 498
Joined: Sun Nov 21, 2004 12:00 pm
Location: Seattle, WA, USA
Contact:

Re: JK 24v 3liter ..at last!

Post by Michael »

Nice! Does the plenum restrict power when installed on a 24v?
Also, are those standard Alfa 164LS coil plugs?
Really clean installation :)
Michael
1981 GTV6

Jim K
Verde
Verde
Posts: 1732
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: JK 24v 3liter ..at last!

Post by Jim K »

The coils are std alfa 164Q4 items, which I assume are common among all Alfa 24v engines. We'll know about power come dyno time. I may just stick a vacuum gauge and monitor plenum pressure! Will that solve any mysteries? :?:
Jim K.

la_strega_nera
Platinum
Platinum
Posts: 494
Joined: Tue Feb 21, 2006 10:05 pm
Location: Sunny Euro-Brisney

Re: JK 24v 3liter ..at last!

Post by la_strega_nera »

Will be interested to hear what it's like to drive compared to the 1.8Ts...
Looking at picking up a 75 Twinny to either build a turbo motor for, or put the 24valver I've got into...
1966 GTV
1982 Suzuki "Bathurst" Katana
1995 Cagiva Mito (race kitted 250 powered)

Jim K
Verde
Verde
Posts: 1732
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: JK 24v 3liter ..at last!

Post by Jim K »

Ben, at least for the 1.8T: even before we get the 24v car back, there's no comparison at all between any 3liter and a factory 1.8T up to ~3500rpm. The T is dead up to that point. Now, if you really play with it management-wise, bump CR up a bit and use a different snail, you can improve things a lot and boost from ~2500, but below that...3liters rule. If you accept this, fine. The TS should be much better than the 1.8T in this respect but still, lower down don't expect any meaningful comparison! I say this as I'm always considering daily city driving. But then again, in a congested environment you never get the chance to move fast enough to appreciate anything! :)
Jim K.

User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Re: JK 24v 3liter ..at last!

Post by Mats »

Except the ladies of course... 8)
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!

User avatar
fedezyl
Verde
Verde
Posts: 645
Joined: Wed Jun 01, 2005 2:45 pm
Location: Montevideo, Uruguay

Re: JK 24v 3liter ..at last!

Post by fedezyl »

Lovely indeed, makes me want to put my 24v in the Giulie!
:D

Greg Gordon
Verde
Verde
Posts: 1552
Joined: Mon Nov 29, 2004 7:06 pm

Re: JK 24v 3liter ..at last!

Post by Greg Gordon »

It starts nicely and sounds great. All that black makes it look sinister. Nice job making the headers, they look good, and I know that was a lot of work.

I doubt the plenum itself would be restrictive, the runners plenum's outlets, and the runners might be, but the shape and volume of the plenum should be fine.

Greg

User avatar
Giuliettaevo2
Verde
Verde
Posts: 783
Joined: Sun May 08, 2005 11:56 pm
Location: Netherlands

Re: JK 24v 3liter ..at last!

Post by Giuliettaevo2 »

The plenum is too small for a NA 3.0 engine... The 3.0 plenum used on the 164 and other fwd models has a larger capacity. :wink:

I think Kevin tested with a enlarged plenuw once...
Drive it like you stole it...

Jim K
Verde
Verde
Posts: 1732
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: JK 24v 3liter ..at last!

Post by Jim K »

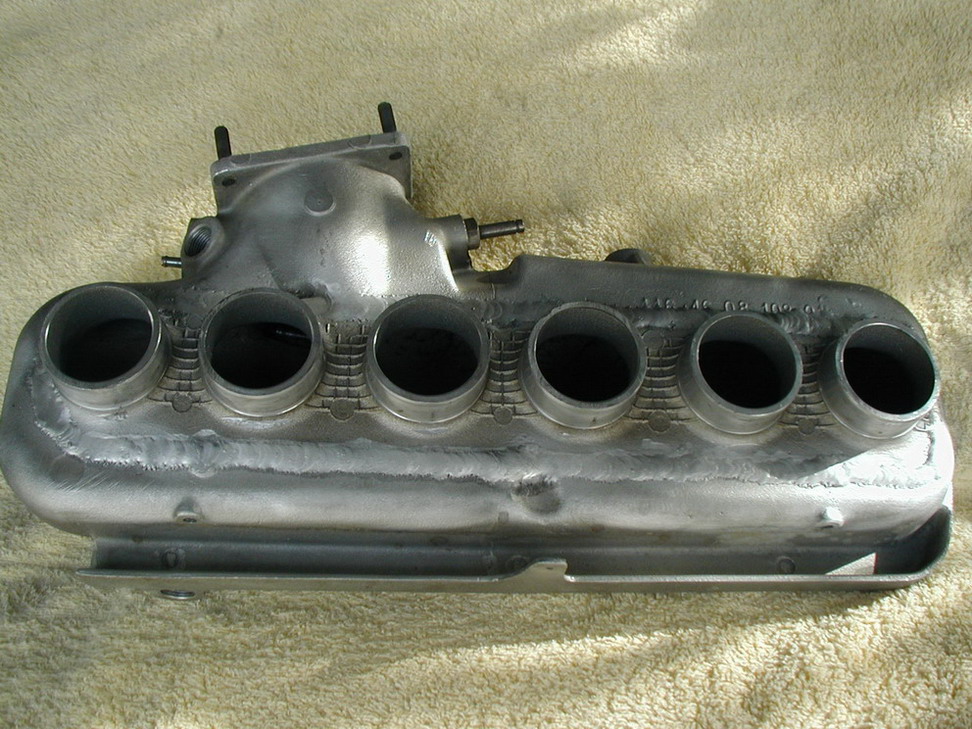

What you don't see is the underside of the plenum. I grafted the Q4 plenum outlets to the rwd plenum underside and them 6 holes are very well radiused and 47mm ID. The Samco reducers connect these to the sawed-off large chrome runners. If at any time it is determined the plenum is too small (currently 2.2lt volume) there is always room to enlarge it by welding another plenum half towards the driver side.
Jim K.
Attachments
24v pics. 031a.jpg
24v pics. 031a.jpg (244.73 KiB) Viewed 8534 times

JohnGTA
Silver
Silver
Posts: 30
Joined: Tue Mar 02, 2010 12:21 pm
Location: Eastern Cape, South Africa

Re: JK 24v 3liter ..at last!

Post by JohnGTA »

Very nice 8)
85' 3L GTV6(White) number 197off 212, 3.5L
83' 3L GTV6 (Red) number 46 off 212
03' 156GTA(Red)3.7L Turbo
06' 147GTA(Blue)3.8L+6XITB's

Greg Gordon
Verde
Verde
Posts: 1552
Joined: Mon Nov 29, 2004 7:06 pm

Re: JK 24v 3liter ..at last!

Post by Greg Gordon »

Very cool work on the plenum. I never thought of that, grafting in the whole Q4 plenum bottom and cutting Q4 runners, clever.

Greg

User avatar
Zamani
Site Admin
Site Admin
Posts: 1671
Joined: Sun Nov 28, 2004 8:20 pm
Location: Cameroon

Re: JK 24v 3liter ..at last!

Post by Zamani »

That plenum was enough for Beninca's 278 whp GTV6, I doub't it's really too small for ~ 300 bhp applications.
Dr. Alban

Jim K
Verde
Verde
Posts: 1732
Joined: Tue Nov 30, 2004 12:10 am
Location: Athens,Greece

Re: JK 24v 3liter ..at last!

Post by Jim K »

I confess I prefer the rwd symmetric look plenum over the one-sided chrome pipe and plenum affair. The length (valve to plenum) is ~29cm in the rwd setup and ~32cm for the chromes, so what the hell, I'll take whats coming!

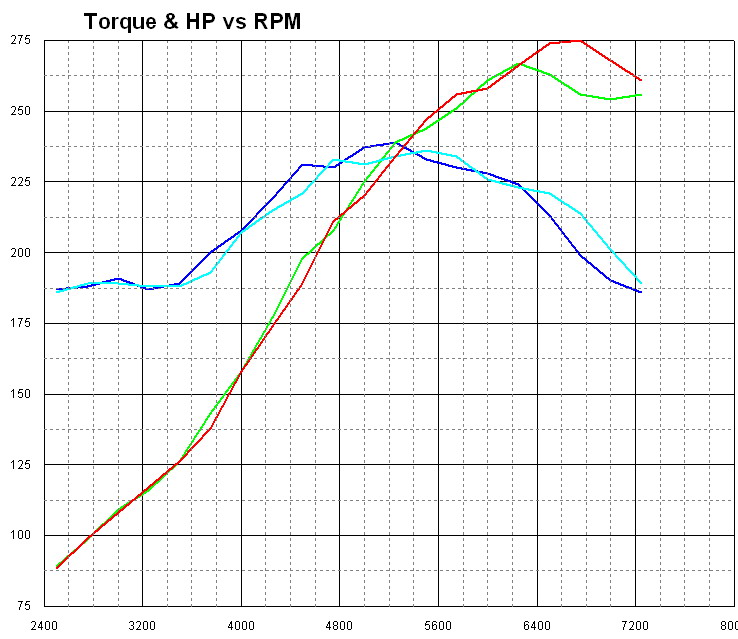

As a matter of fact, the Performance Trends engine simulator shows a clear advantage of the rwd arrangement -see attached graph! The only difference in data input is 290mm length in one case and 320mm in the other, everything else being the same. The red line is 290mm from valve to plenum.
Jim K.
Attachments
24v rwd-fwd intake.jpg
24v rwd-fwd intake.jpg (125.26 KiB) Viewed 8500 times

la_strega_nera
Platinum
Platinum
Posts: 494
Joined: Tue Feb 21, 2006 10:05 pm
Location: Sunny Euro-Brisney

Re: JK 24v 3liter ..at last!

Post by la_strega_nera »

Lovely.
Under 3500rpm doesn't bother me the slightest :P
Logic says put cams into 3l and run it with a squadra chip as opposed to building up the 1.8 alfetta parts motor for boost and going aftermarket management... all fantasy land at the moment though - need to get rid of the 164 and the mustang.
1966 GTV
1982 Suzuki "Bathurst" Katana
