24V headers

Post by 75evo »

Posting all types of 24V headers for the transaxle cars.

kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: 24V headers

Post by kevin »

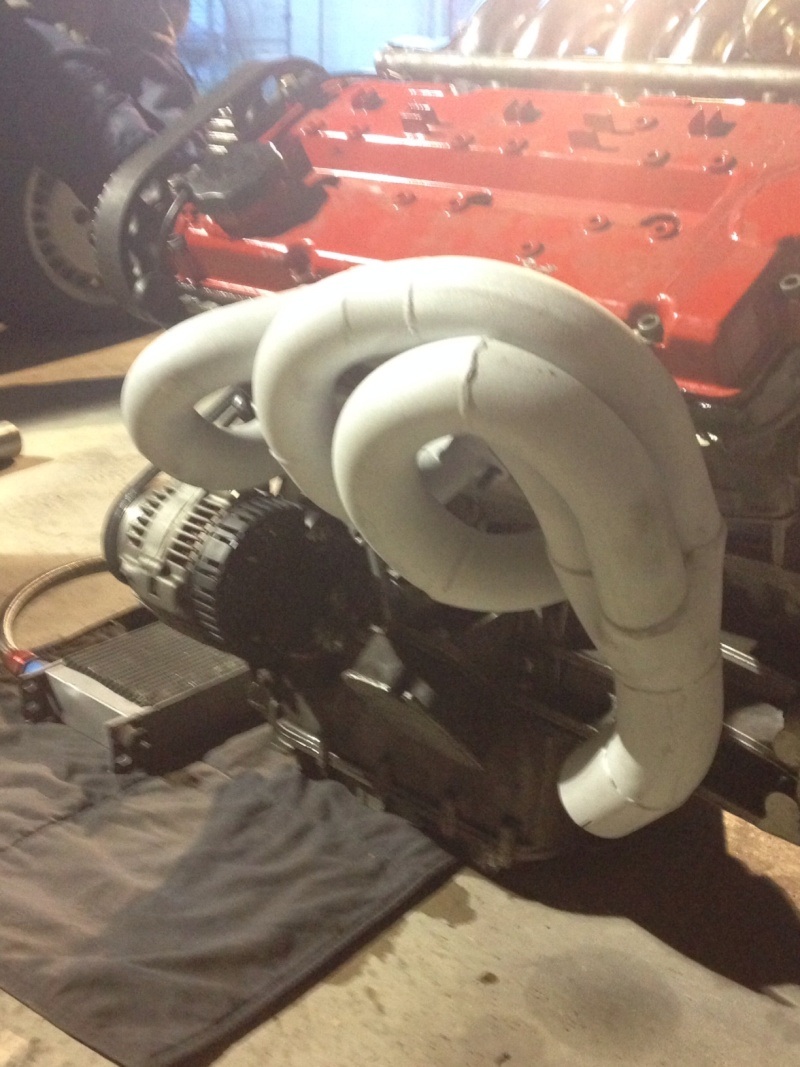

Maybe these headers don't count as they had to go upwards due to being 44 mm diameter to match the 3.7 big bore capacity . They simply cannot go downwards as their is no space to fit 3x 44mm pipes in that tiny space . These were made for Glenwood designed by Div .
Chaps with the tiny 36 mm csc headers already know space is very tight as these headers pass the sump .
Attachments

kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: 24V headers

Post by kevin »

The good old short headers which were cheap and convenient to make before you added export costs and freight .
Could take them on and off in twenty mins .
Attachments

squadragrunn
Gold
Gold
Posts: 85
Joined: Sat Jun 18, 2011 1:11 am
Location: netherlands

Re: 24V headers

Post by squadragrunn »

this is what i did....
-charles-
gtv6 3.0 24v, 164qv 24v, maserati biturbo 2.8 evo, mb 500se, zzr1100d

kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: 24V headers

Post by kevin »

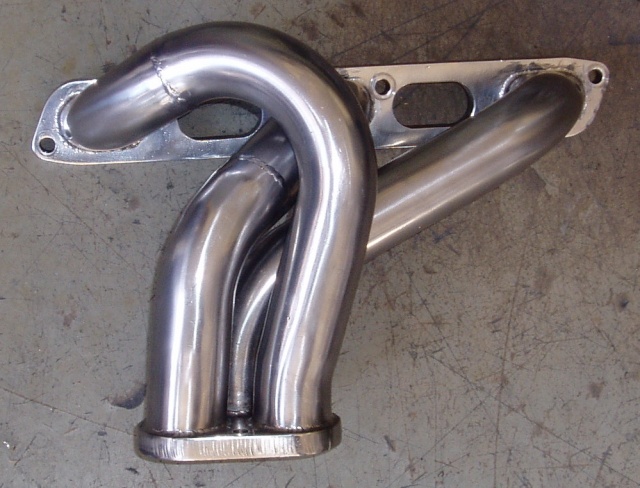

This was Gatouille headers and dims I have transferred to this section from his post in vendor and products . Just searching for jims to put here but can't find it . Zam can you find it?

""A pair of brand new exhaust manifold for 24V motor, mount on GTV6 or Alfa Milano (75)

Diam (inner) 41mm X3 length 600 mm final diameter (inner)60 mm""
Attachments

User avatar
75evo
Verde
Verde
Posts: 934
Joined: Tue Oct 11, 2005 8:56 am

Re: 24V headers

Post by 75evo »

Kev,

Oh nice, you posted "Les Francaise tres longue headers"

Yeah, I'll post up JK's long tubes.

User avatar
75evo
Verde
Verde
Posts: 934
Joined: Tue Oct 11, 2005 8:56 am

Re: 24V headers

Post by 75evo »

JK Longubes
Attachments

User avatar
75evo
Verde
Verde
Posts: 934
Joined: Tue Oct 11, 2005 8:56 am

Re: 24V headers

Post by 75evo »

JK Longtubes
Attachments

kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: 24V headers

Post by kevin »

Those are sooooo pretty .

kevin
Verde
Verde
Posts: 2762
Joined: Sat Jan 22, 2005 9:09 am
Location: Esher, UK

Re: 24V headers

Post by kevin »

Some pics from the Bulgarian boys - small but neat mods to the original headers .
Attachments

hexen
Silver
Silver
Posts: 29
Joined: Mon Jul 18, 2005 3:29 am

Re: 24V headers

Post by hexen »

my headers from original 164 24v



when I need more HP, I will change it

User avatar
Mats
Verde
Verde
Posts: 4059
Joined: Mon Nov 29, 2004 12:26 am
Location: Gothenburg, Sweden
Contact:

Re: 24V headers

Post by Mats »

For fox sake...

Resize the pictures before linking/uploding. :shock:
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-

GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!

User avatar
MD
Verde
Verde
Posts: 2417
Joined: Mon Nov 22, 2004 2:37 am
Location: Brisbane, Australia

Re: 24V headers

Post by MD »

Gentlemen.
We are getting so engrossed in the engine headers issue that little attention is being paid to safety fundamentals.
All you fabricators need to go back to high school and pay more attention to your science classes !! :D

Out of the three forms of heat transfer, convection, conduction and radiation, radiation is the most efficient. That's why the sun was invented. :D

Given the proximity of the headers in this photo (and others) to the front brake line, this is a potential brake boiling episode just waiting to happen along with the consequence of such an event.

FIX IT FOR FK SAKE !!!
Attachments
Brake failure from radiant heat.jpg
Brake failure from radiant heat.jpg (250.4 KiB) Viewed 7182 times
Transaxle Alfas Haul More Arse

squadragrunn
Gold
Gold
Posts: 85
Joined: Sat Jun 18, 2011 1:11 am
Location: netherlands

Re: 24V headers

Post by squadragrunn »

You are absolutely right, that is precisely why i wraped the headers in glasscloth and alutape and use a heatshield
-charles-
gtv6 3.0 24v, 164qv 24v, maserati biturbo 2.8 evo, mb 500se, zzr1100d

User avatar
75evo
Verde
Verde
Posts: 934
Joined: Tue Oct 11, 2005 8:56 am

Re: 24V headers

Post by 75evo »

MD,

Those headers are not called the "Widow Maker" for nothing :mrgreen:

Post Reply
